Remote Function Wiring Schematics (Buick)
›
Keyless Remote Start (Buick with BTM)
Keyless Remote Start (Buick with BTM)

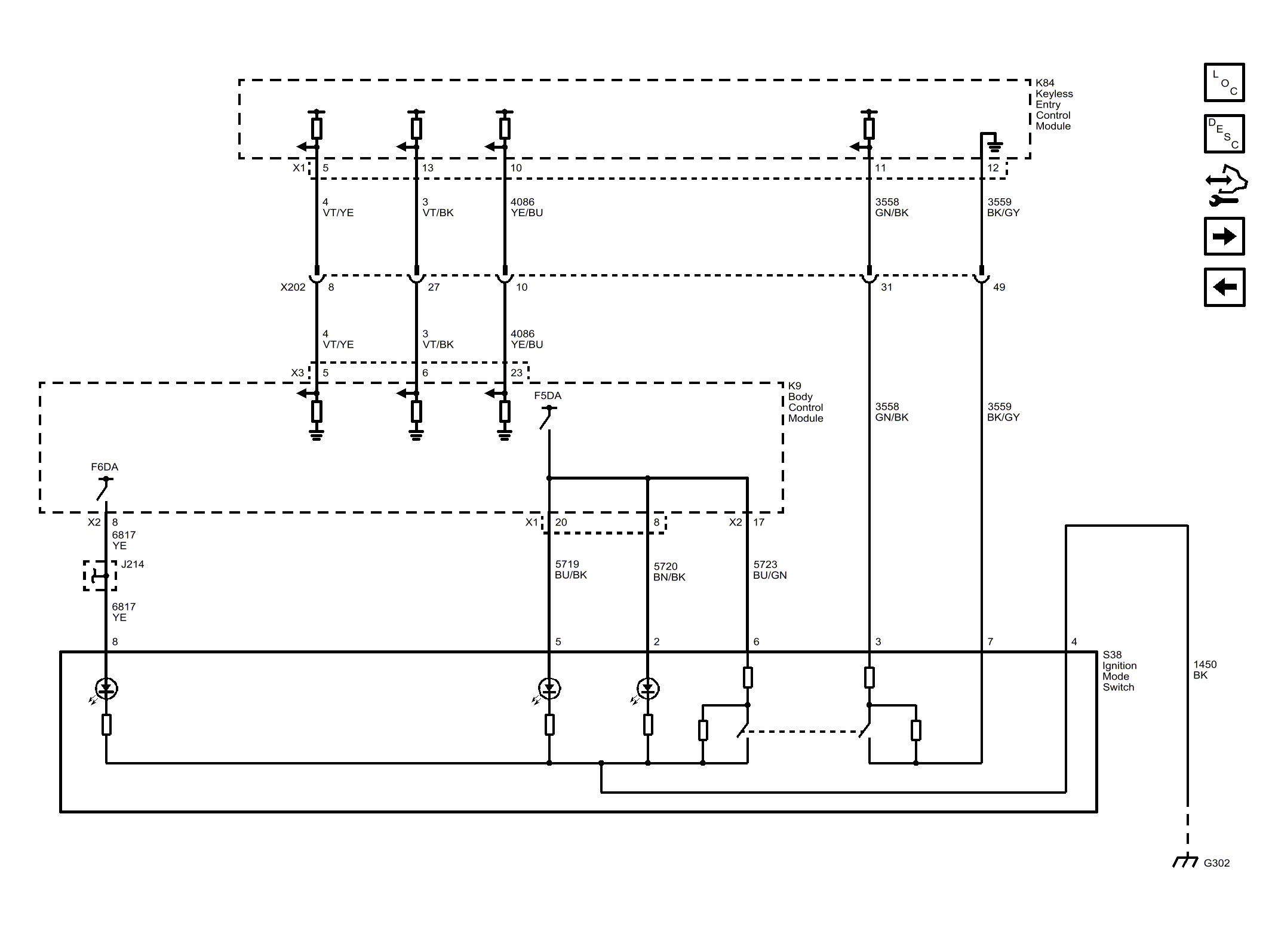

Fig 1: Keyless Remote Start (Buick with BTM)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
