Keyless Start (Chevrolet with BTM)

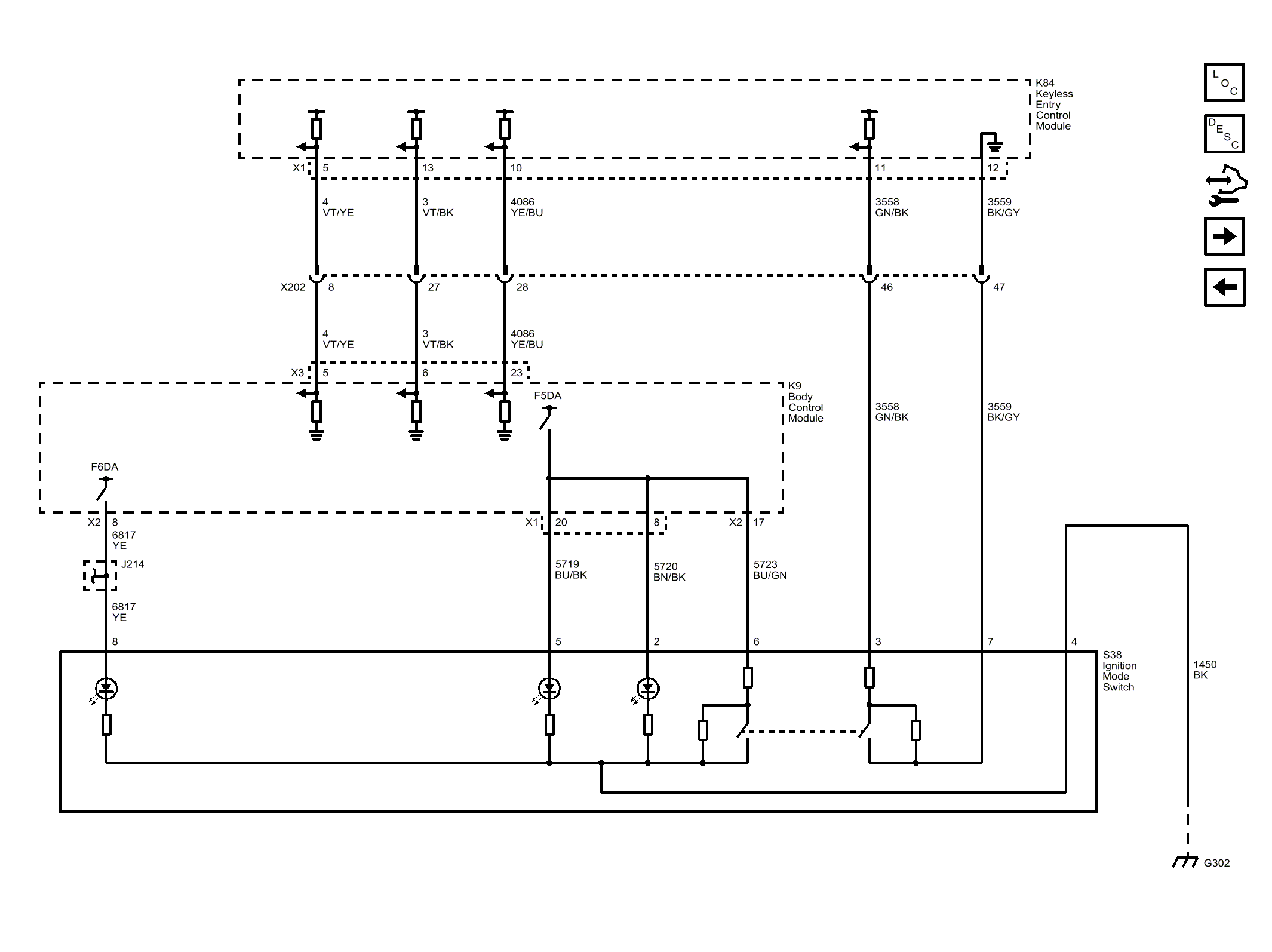

Fig 1: Keyless Start (Chevrolet with BTM)
GM4409724Courtesy of GENERAL MOTORS COMPANY
