Rear Side Door Stationary Window Replacement

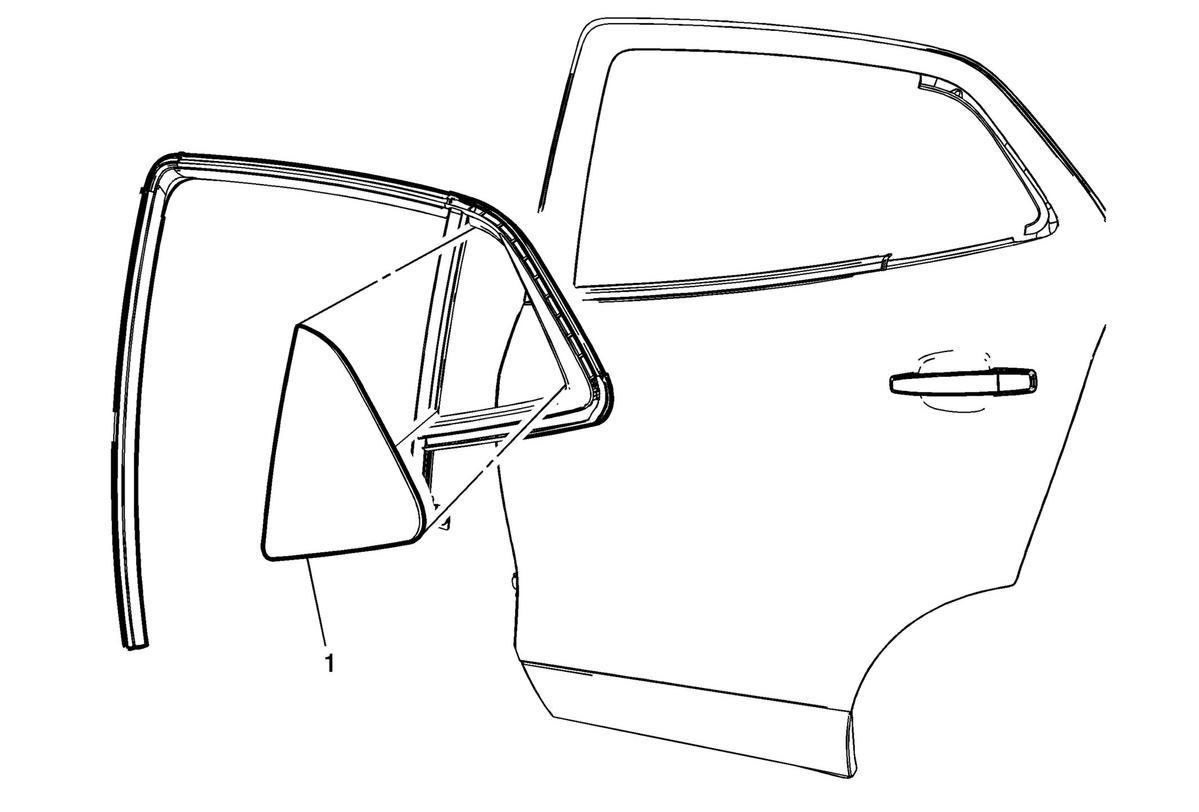

Fig 1: Rear Side Door Stationary Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedures Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .
1	Rear Side Door Stationary Window Procedure With the assembly on a clean and dry surface, roll the stationary window out of the weatherstrip. Ensure that the window weatherstrip and stationary window is fitted around the inner door frame fully. Install the window to the front and rear guides, hand move the window up and down before installing the window to the regulator. Carefully move the window upward for short slow intervals, while ensuring that the window remains in the guide. Inspect the window for proper operation before installing the trim.

Callout

Component Name

WARNING:

Preliminary Procedures Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .

Rear Side Door Stationary Window

Procedure

With the assembly on a clean and dry surface, roll the stationary window out of the weatherstrip.
Ensure that the window weatherstrip and stationary window is fitted around the inner door frame fully.
Install the window to the front and rear guides, hand move the window up and down before installing the window to the regulator.
Carefully move the window upward for short slow intervals, while ensuring that the window remains in the guide.
Inspect the window for proper operation before installing the trim.
