Catalytic Converter Replacement (2H0)

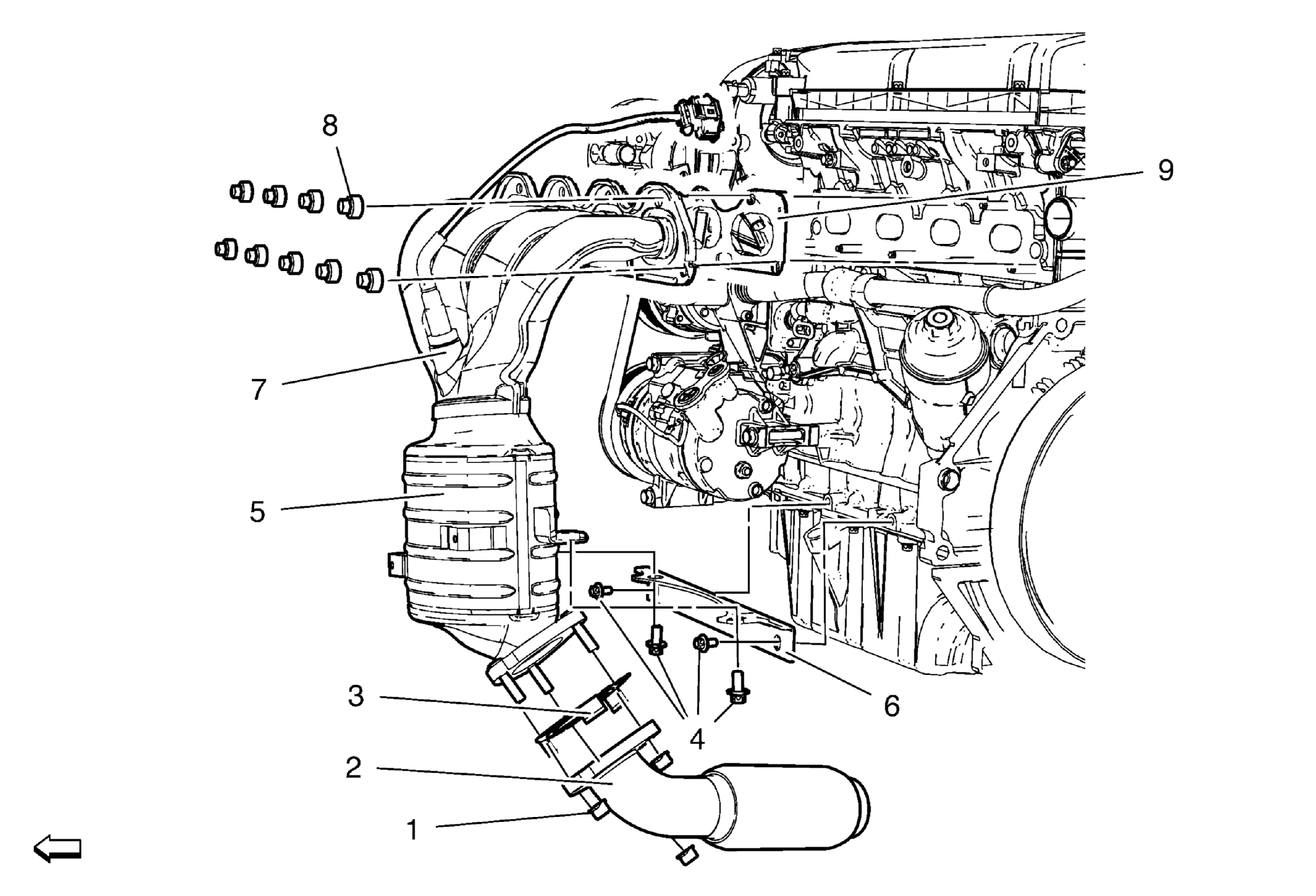

Fig 1: Locating Catalytic Converter Components (2H0)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Protective Goggles and Glove Warning . Preliminary Procedure Remove the catalytic converter heat shield. Refer to Catalytic Converter Heat Shield Replacement .
1	Catalytic Converter to Exhaust Front Pipe Fastener (Qty: 3) CAUTION: Refer to Fastener Caution Tighten  22 N.m (16 lb ft)
2	Exhaust Front Pipe
3	Catalytic Converter to Exhaust front Pipe Gasket
4	Exhaust Manifold Brace Fastener (Qty: 4) Tighten  20 N.m (15 lb ft)
5	Catalytic Converter
6	Exhaust Manifold Brace
7	Heated Oxygen Sensor Tighten  42 N.m (31 lb ft)
8	Catalytic Converter to Cylinder Head Fastener (Qty: 9) Tighten  20 N.m (15 lb ft)
9	Catalytic Converter to Cylinder Head Gasket
