Installation Procedure

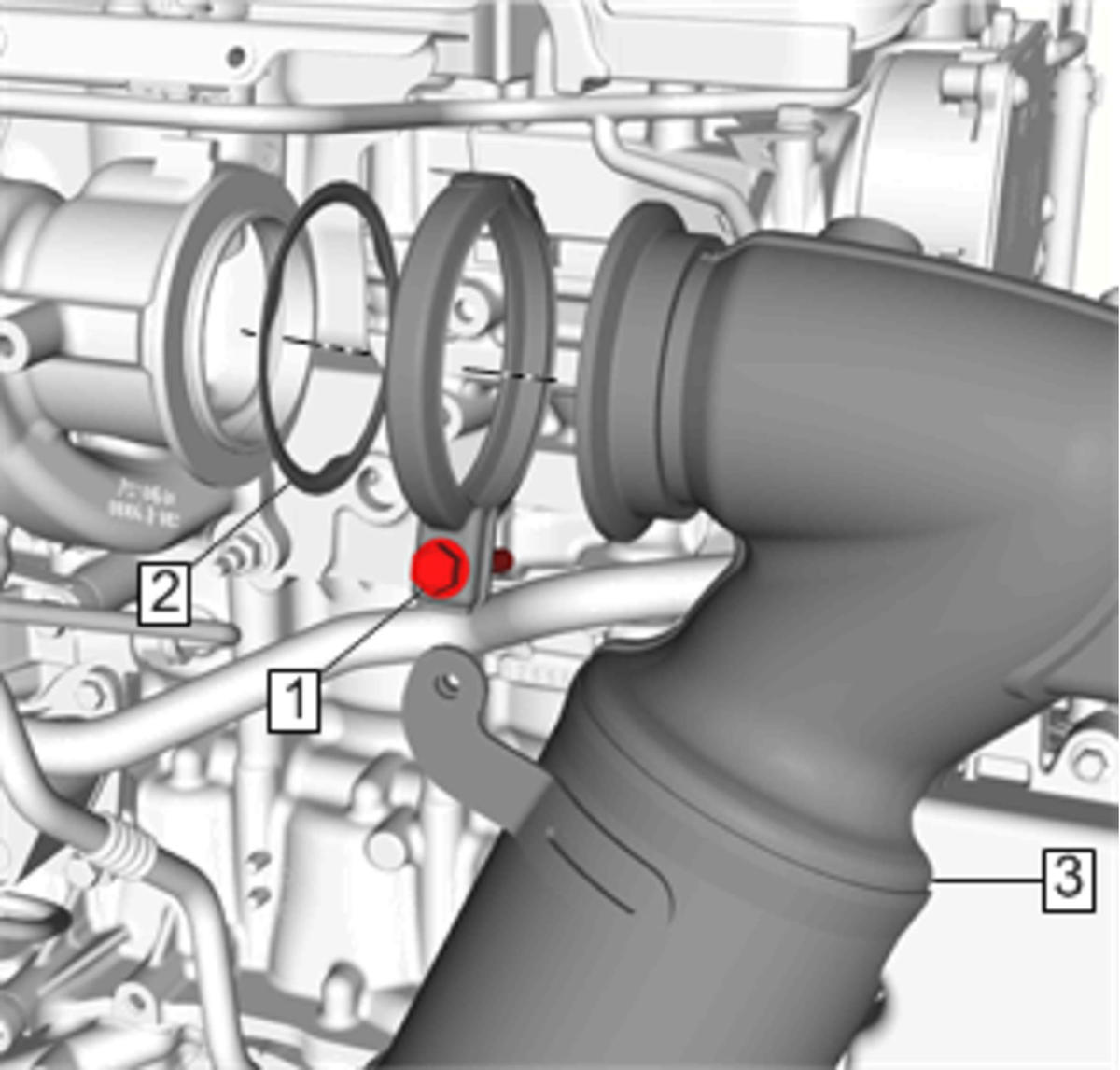

- Install Catalytic Converter (3)
- Install a NEW catalytic converter gasket. (2)
- Loosely Install Catalytic Converter Clamp (1)
- Connect Exhaust Front Pipe@Catalytic Converter - Exhaust Front Pipe Replacement (LE2)
- Connect Catalytic Converter Brace Bracket - Lower @Catalytic Converter - Catalytic Converter Brace Bracket Replacement (Lower LE2) Catalytic Converter Brace Bracket Replacement (Upper LE2)
- Catalytic Converter Clamp and Tighten 15 N.m (11 lb ft)
- Install Catalytic Converter Brace Bracket - Upper - Catalytic Converter Brace Bracket Replacement (Lower LE2) Catalytic Converter Brace Bracket Replacement (Upper LE2)
- Connect Heated Oxygen Sensor Replacement - Sensor 1
CAUTION:
Refer to Fastener Caution .
