Exhaust Rear Muffler Heat Shield Replacement

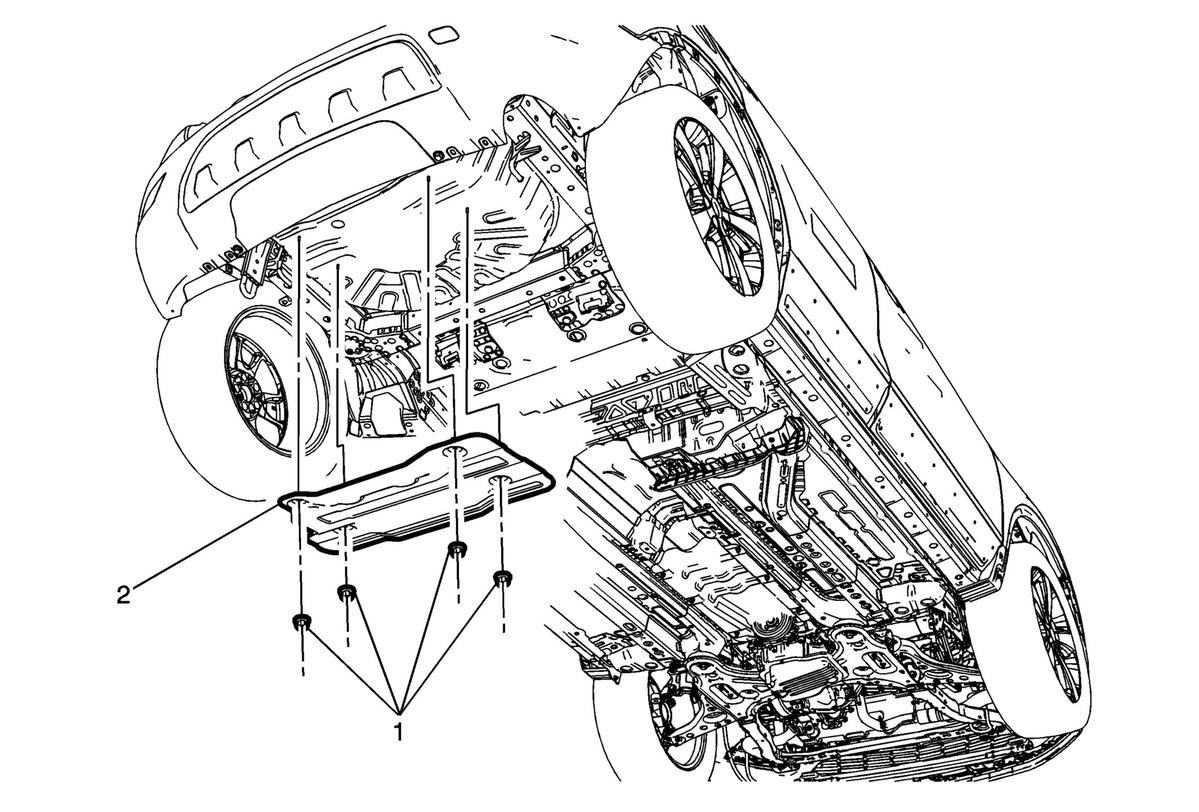

Fig 1: Exhaust Rear Muffler Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Exhaust Rear Muffler Heat Shield Retainer (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (26 lb in)
2	Exhaust Rear Muffler Heat Shield
