Air Cleaner Element Replacement

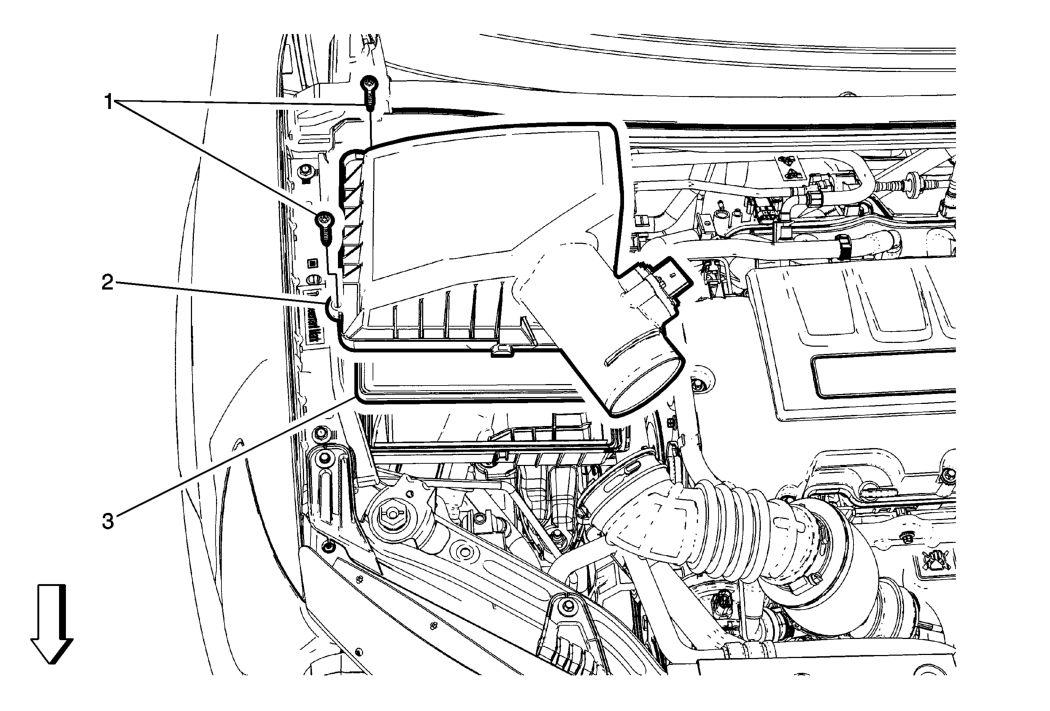

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the mass airflow sensor electrical connector. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Housing Fasteners (Qty: 2)
2	Air Cleaner Housing
3	Air Cleaner Element
