Camshaft Position Sensor Replacement

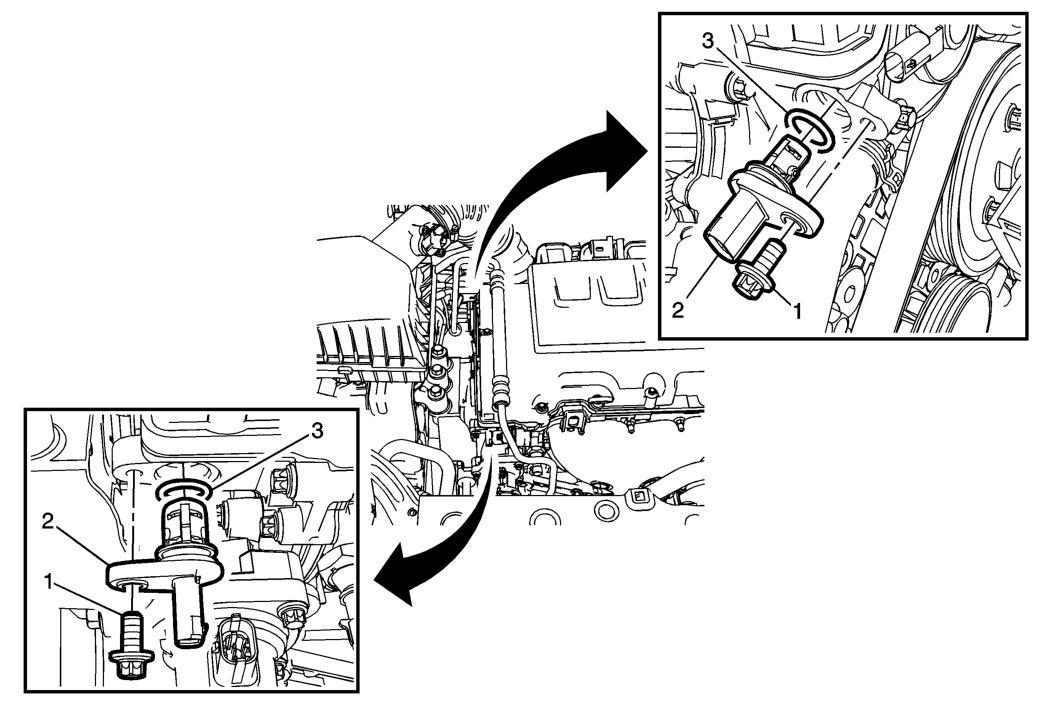

Fig 1: Camshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the electrical wiring harness connector from the camshaft position sensor.
3	Camshaft Position Sensor Seal
