Removal Procedure

  1. Remove Exhaust Manifold Heat Shield Exhaust Manifold Heat Shield Removal
  2. Remove Turbocharger Wastegate Actuator - Turbocharger Disassemble

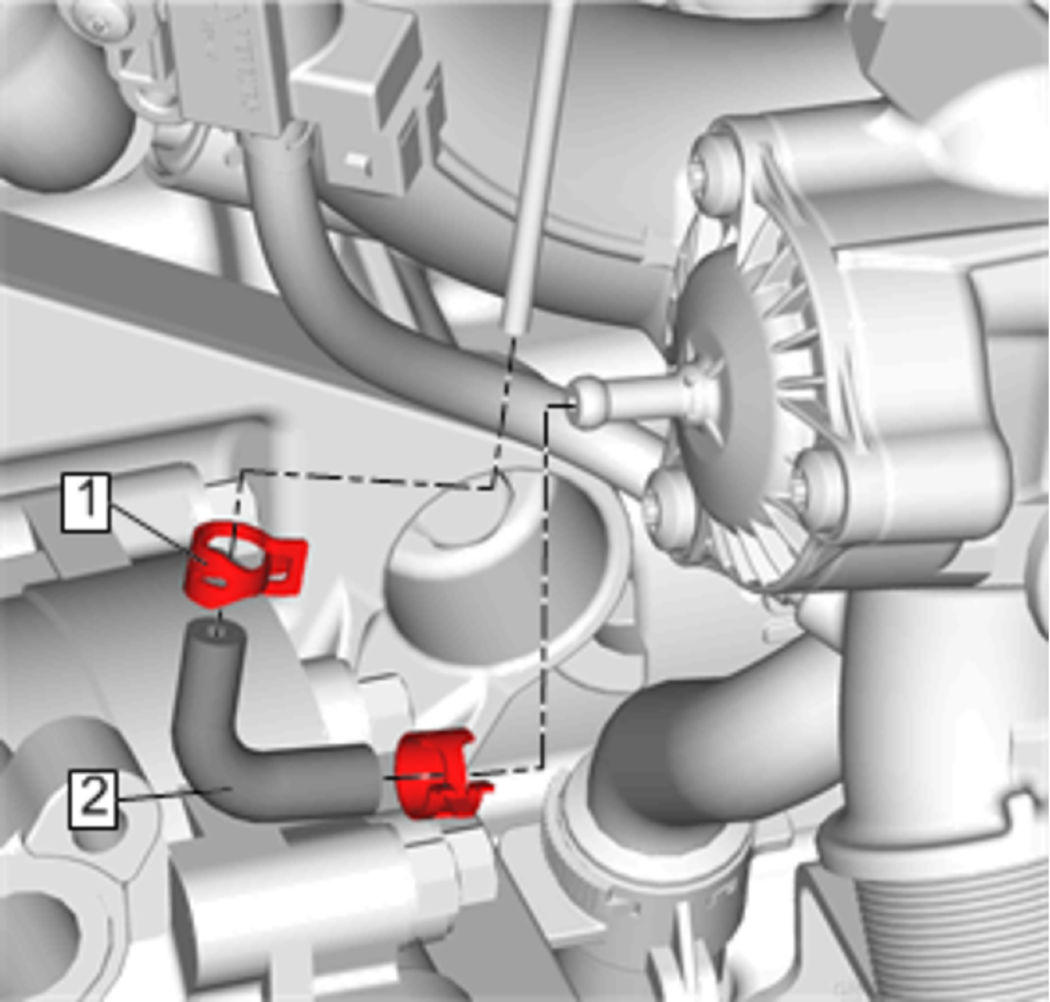

    3. Fig 1: Charge Air Bypass Valve Tube
    GM4033059Courtesy of GENERAL MOTORS COMPANY
  3. Loosen Hose Clamp (1) & Position aside
  4. Remove Charge Air Bypass Valve Tube Connector (2)

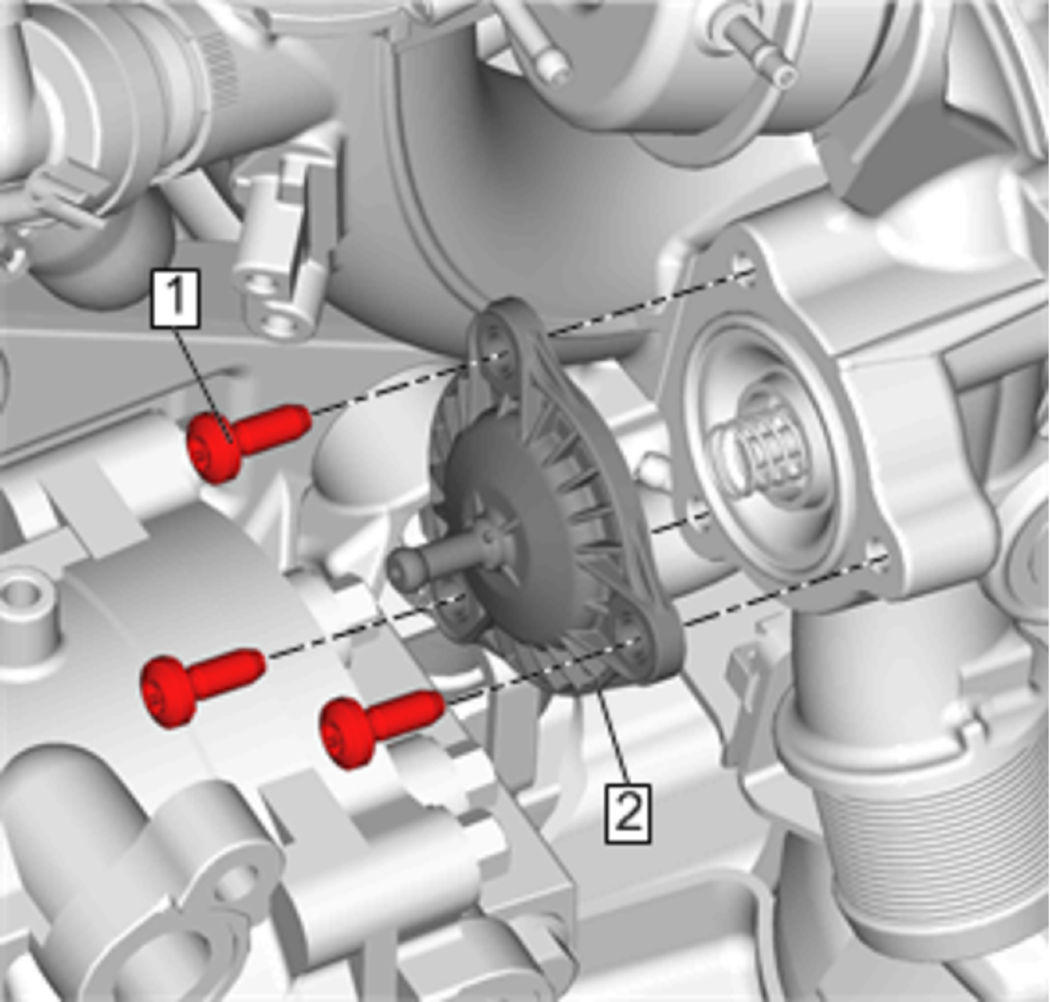

    5. Fig 2: Charge Air Bypass Valve Cover
    GM4033086Courtesy of GENERAL MOTORS COMPANY
  5. Remove Fastener (1)
  6. Remove Charge Air Bypass Valve Cover (2)

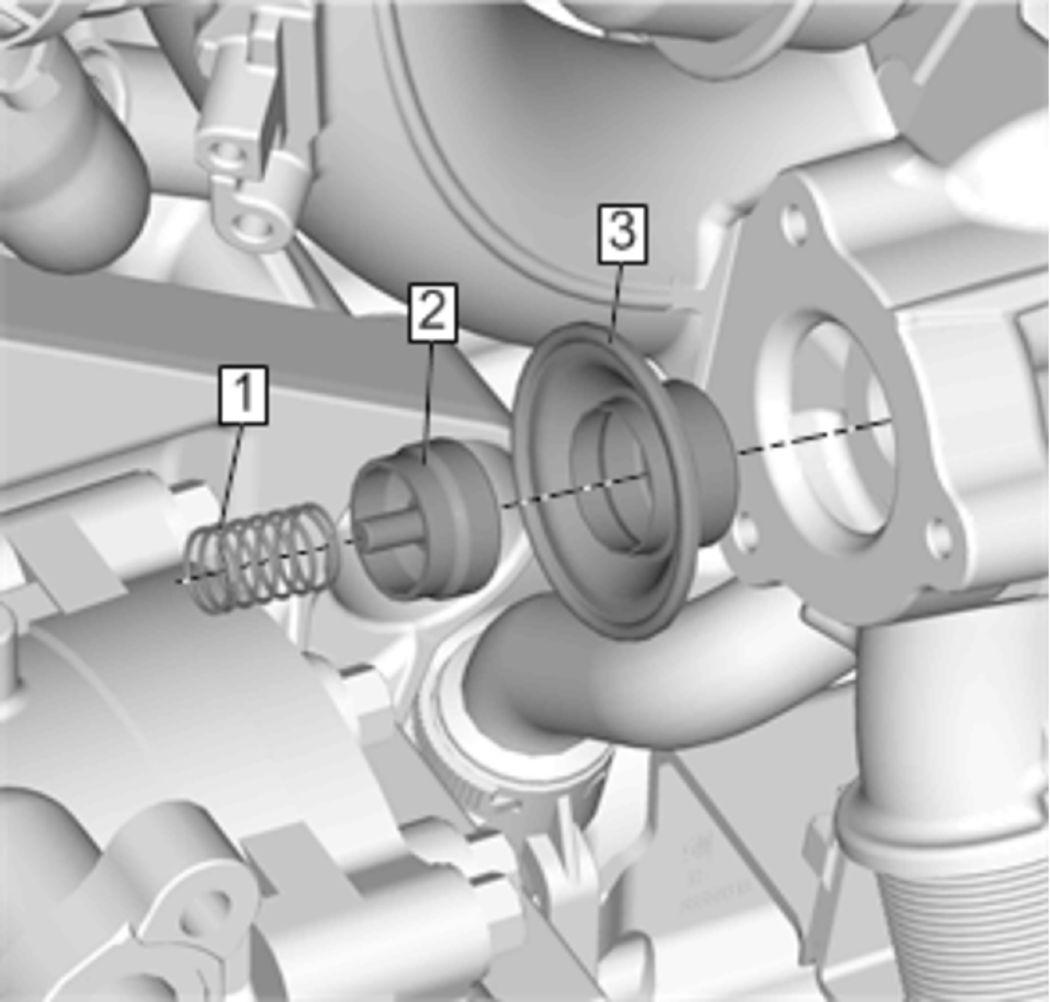

    7. Fig 3: Charge Air Bypass Valve Piston/Membrane
    GM4033157Courtesy of GENERAL MOTORS COMPANY
  7. Remove Valve Spring (1)
  8. Remove Charge Air Bypass Valve Piston (2)
  9. Remove Charge Air Bypass Valve Membrane (3)
