Front Seat Belt Buckle Replacement

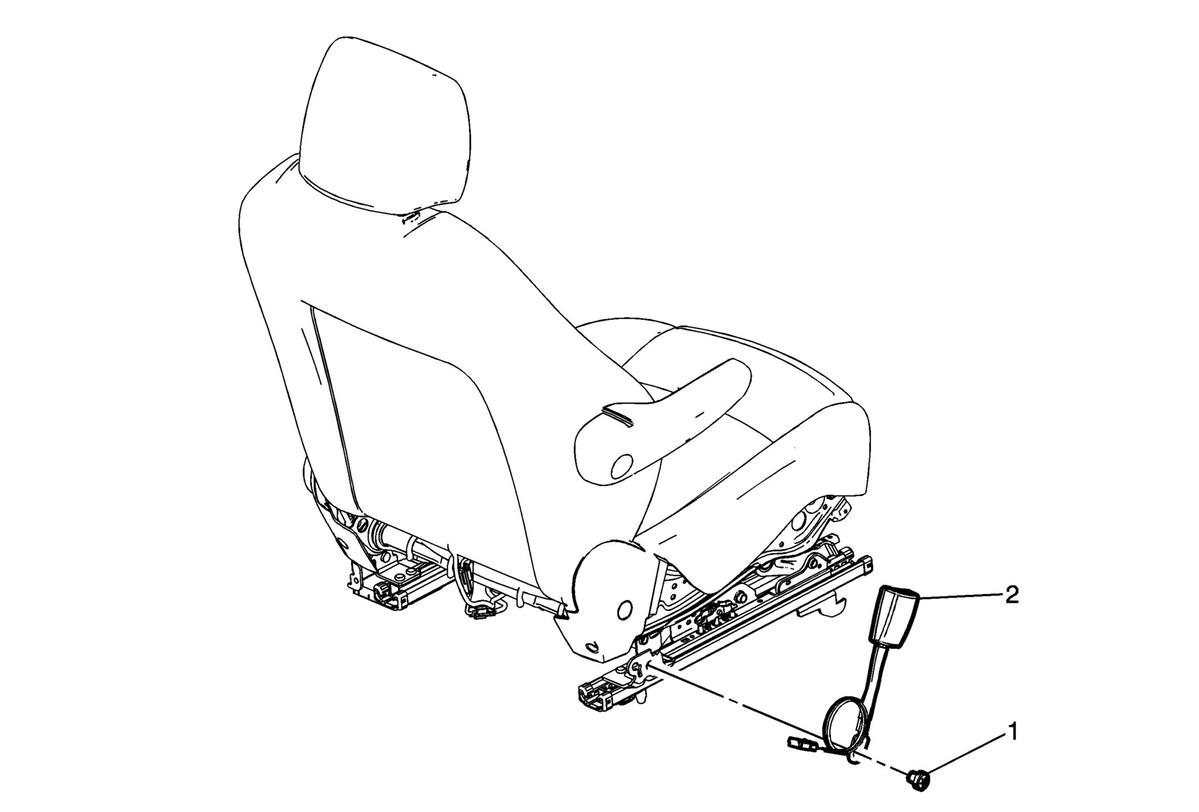

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Driver or Passenger Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Driver or Passenger Seat Belt Buckle Assembly Procedure  Disconnect the electrical connector, if equipped.
