Installation Procedure

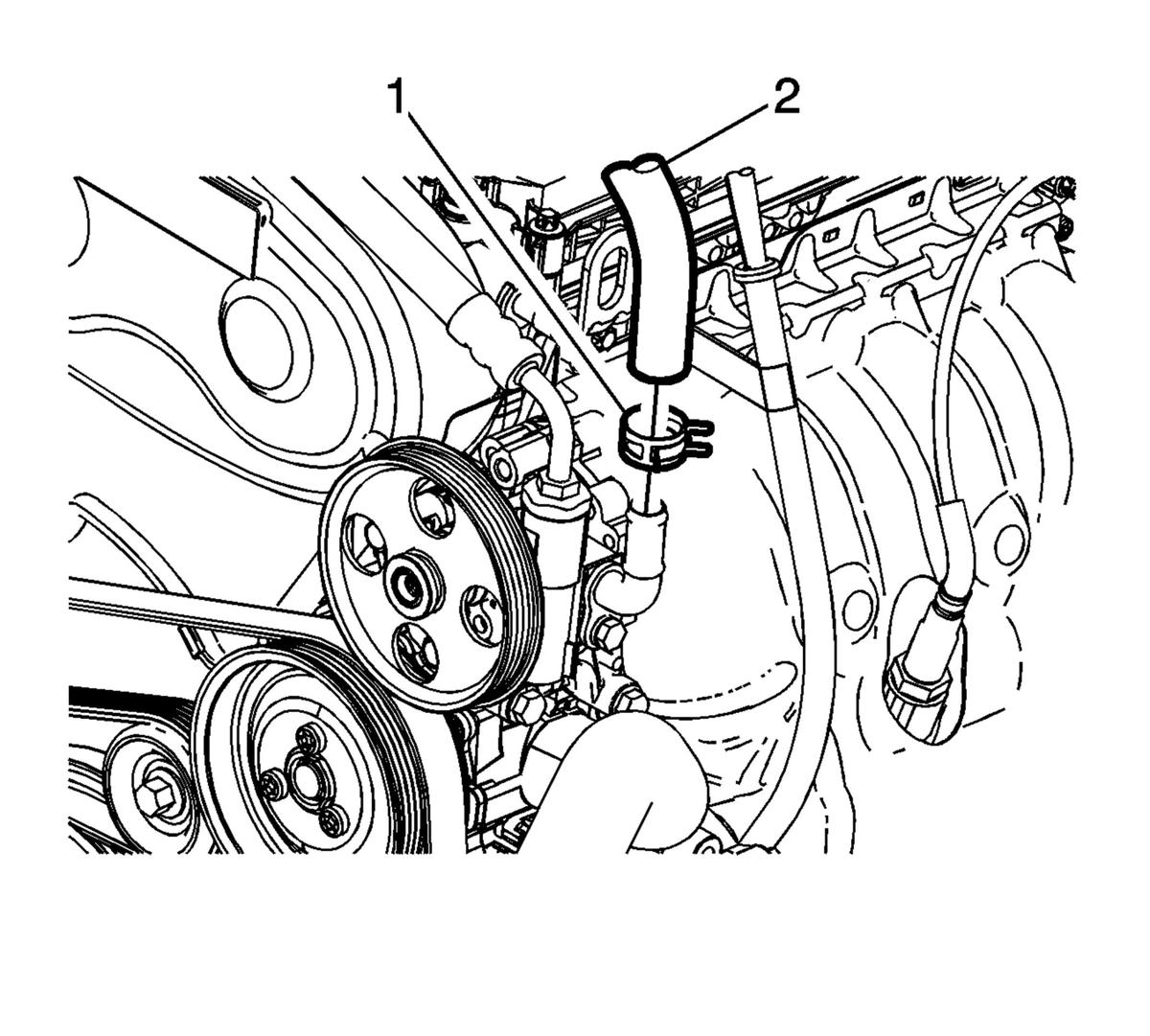

    Fig 1: Power Steering Fluid Reservoir Outlet Hose And Clamp
    GM2807373Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering fluid reservoir outlet hose (2) on the vehicle.
  2. Install Power Steering Fluid Reservoir Outlet Hose (2) @ Power Steering Pump
  3. Engage Power Steering Fluid Reservoir Outlet Hose Clamp (1)

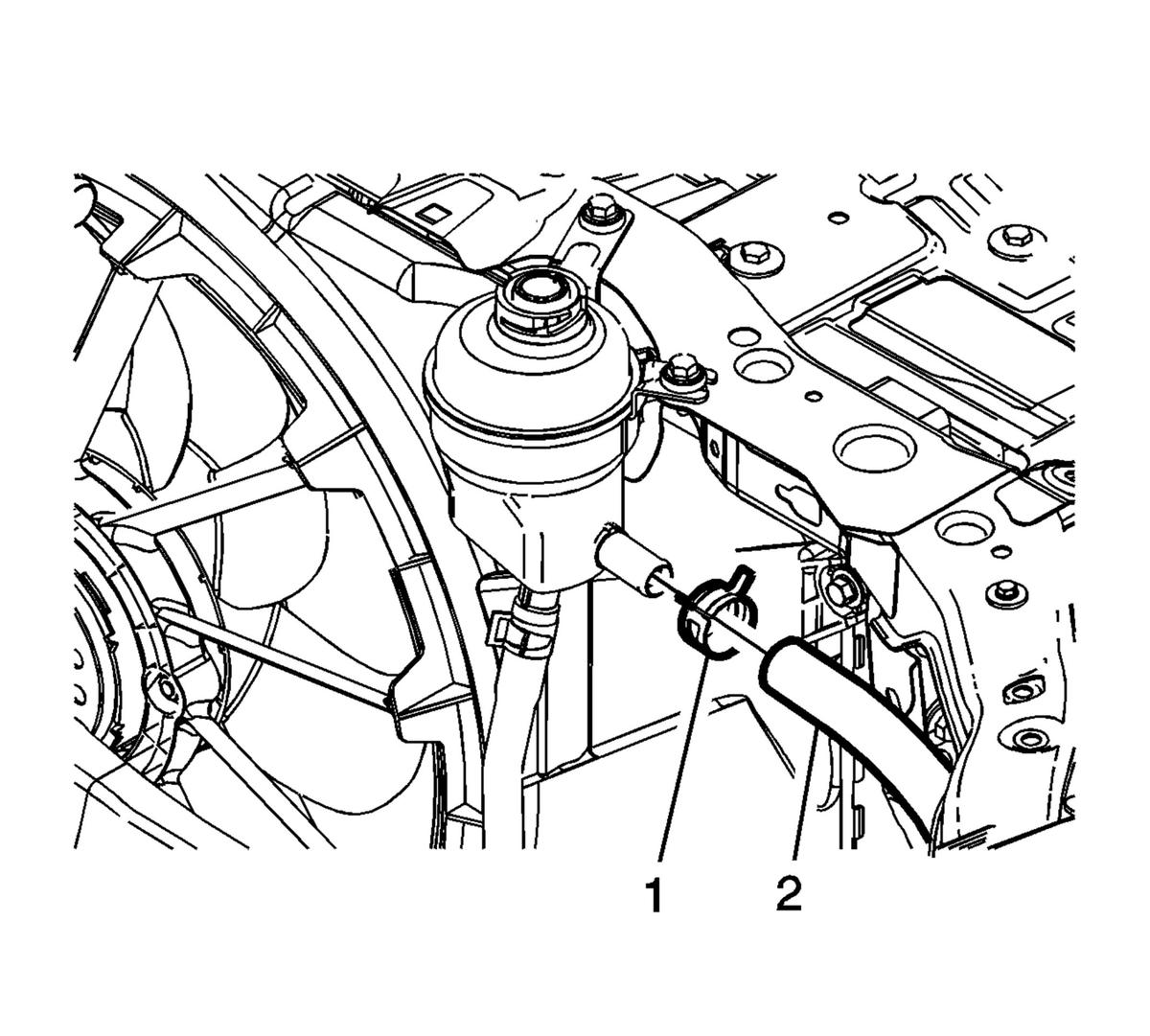

    4. Fig 2: Steering Fluid Reservoir Outlet Hose And Clamp
    GM2807370Courtesy of GENERAL MOTORS COMPANY
  4. Install Power Steering Fluid Reservoir Outlet Hose (2) @ Power Steering Fluid Reservoir
  5. Engage Power Steering Fluid Reservoir Outlet Hose Clamp (1)
  6. Fill and bleed the power steering system. Refer to Power Steering System Bleeding
