Power Steering Pump Rear Brace Replacement

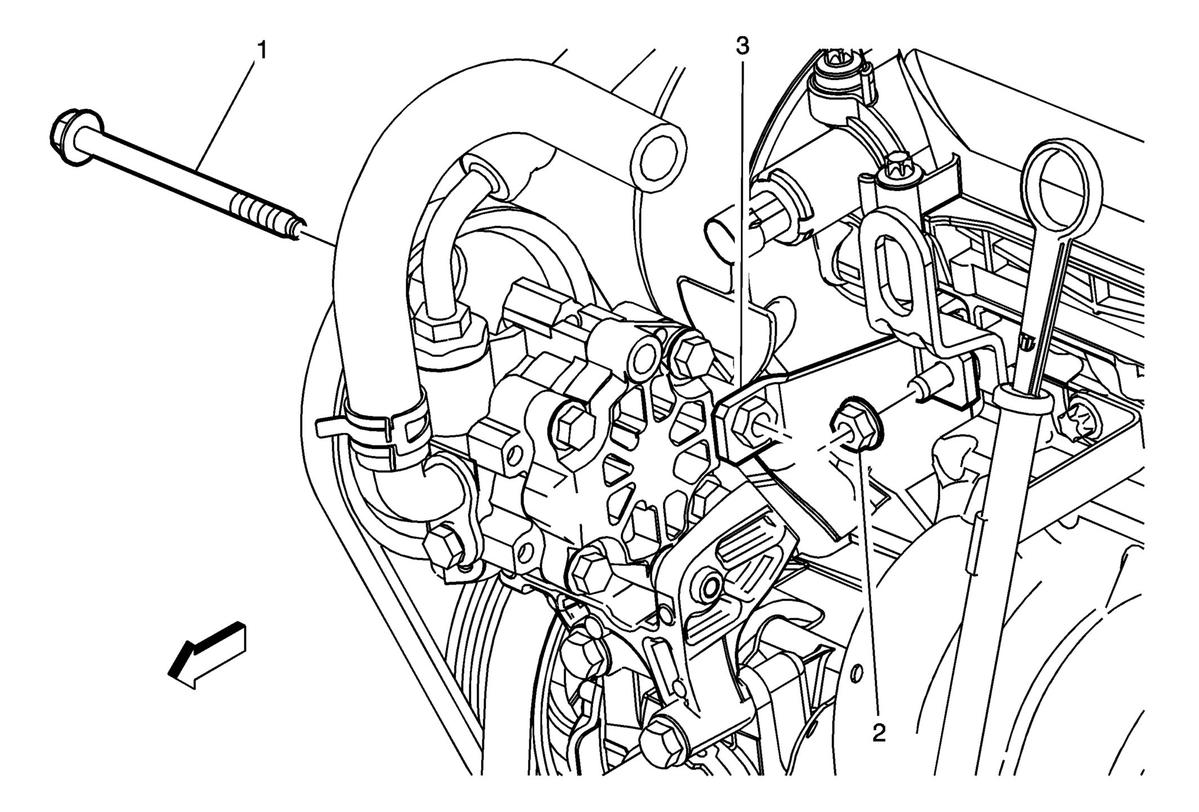

Fig 1: Power Steering Pump Rear Brace

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Power Steering Fluid Reservoir. Refer to Power Steering Fluid Reservoir Replacement
1	Power Steering Pump Bolt CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Power Steering Pump Rear Brace Nut Tighten  22 N.m (16 lb ft)
3	Power Steering Pump Rear Brace
