Transmission Fluid Auxiliary Cooler Replacement

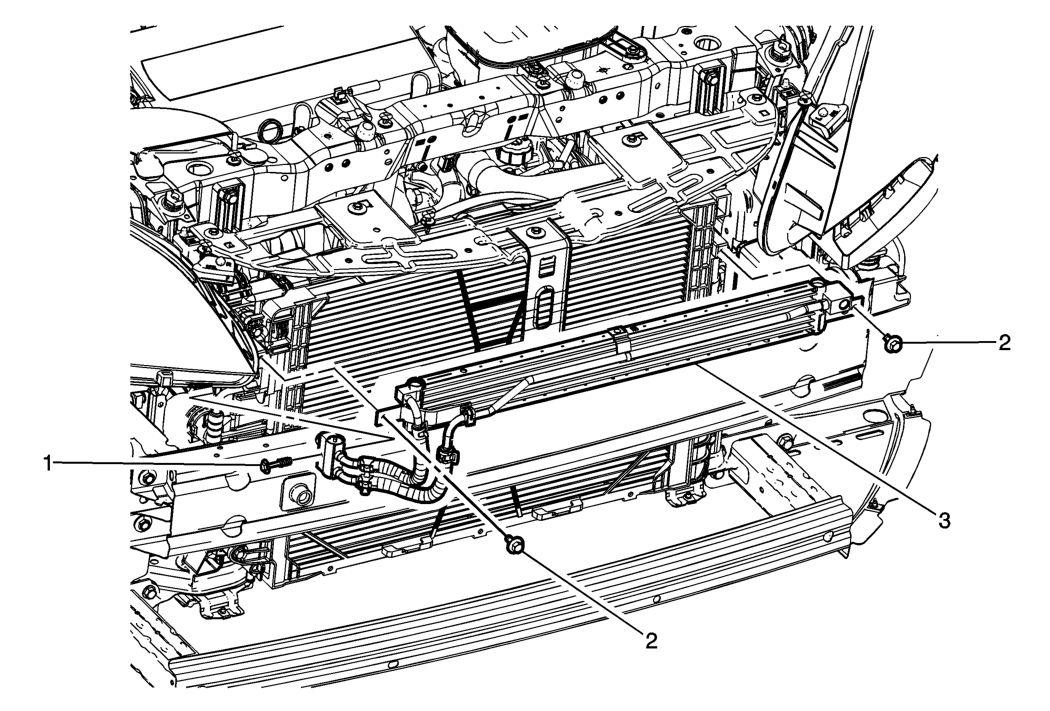

Fig 1: Transmission Fluid Auxiliary Cooler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Buick) . Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement . Remove the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (LE2 LUV) .
1	Transmission Fluid Auxiliary Cooler Fastener CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Transmission Fluid Auxiliary Cooler Fastener (Qty: 2) Tighten 6 N.m (53 lb in)
3	Transmission Fluid Auxiliary Cooler Procedure Adjust the transmission fluid level. Refer to Transmission Fluid Level and Condition Check . Inspect for fluid leaks.
