Shift Lock Control Wiring Schematics (Chevrolet)
›
Shift Lock Control (Chevrolet with MM1)
Shift Lock Control (Chevrolet with MM1)

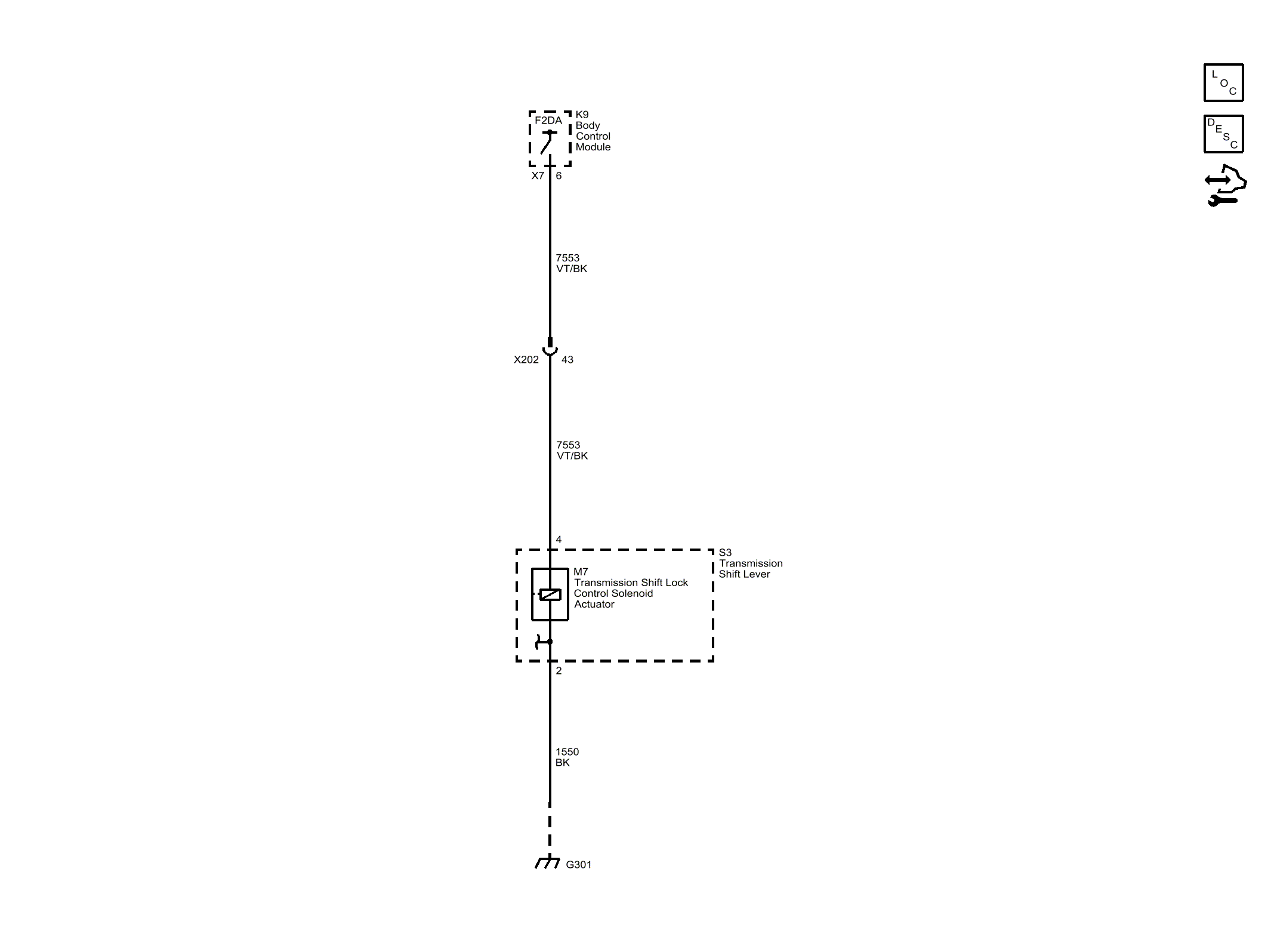

Fig 1: Shift Lock Control (Chevrolet with MM1)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
