Human Machine Interface Control Module - Power, Ground, Serial Data, and Functions

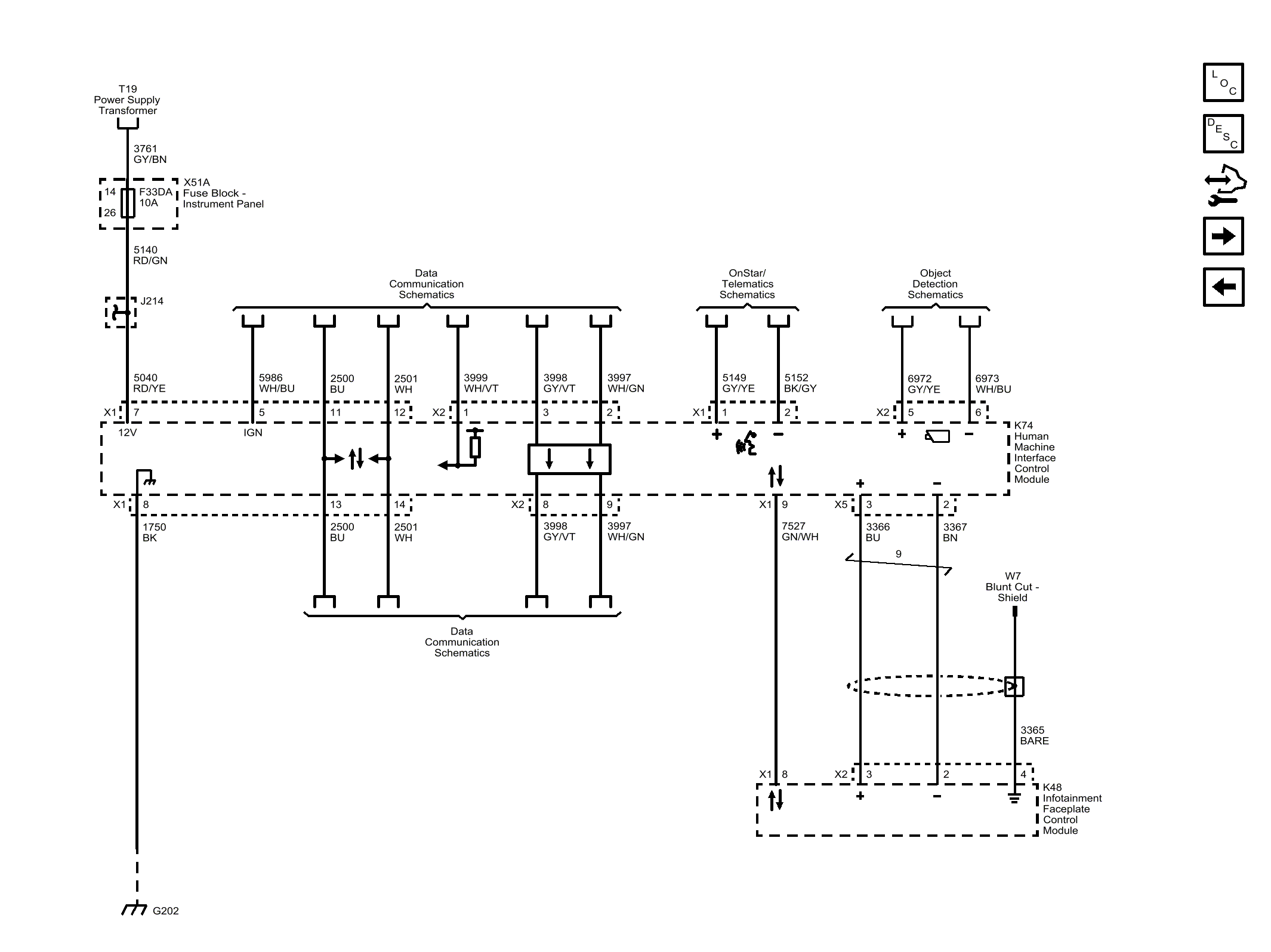

Fig 1: Human Machine Interface Control Module - Power, Ground, Serial Data, and Functions
GM4493692Courtesy of GENERAL MOTORS COMPANY
