Front View Driver Information Camera Replacement

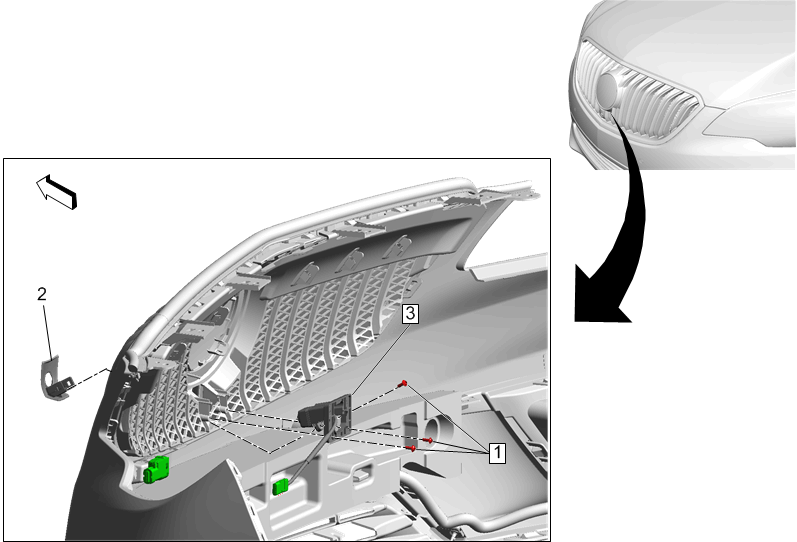

Fig 1: Front View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Front Bumper Fascia Extension Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb in)
2	Front View Driver Information Camera Bracket Procedure  Use a flat bladed plastic trim tool.
3	Front View Driver Information Camera Procedure  Disconnect the electrical connector.
