Rear Parking Assist Alarm Sensor Replacement

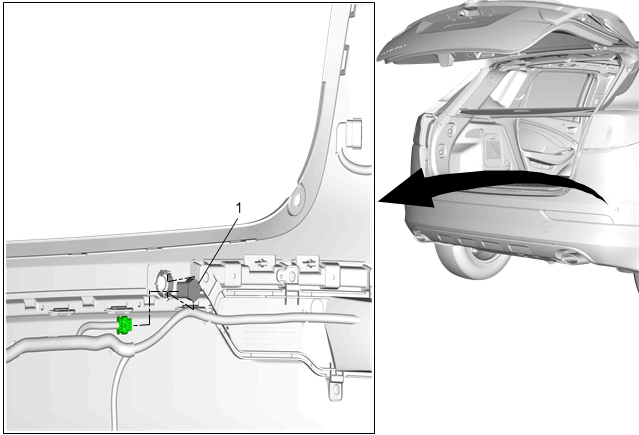

Fig 1: Rear Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Fascia Energy Absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement
1	Rear Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the rear object alarm sensor bracket. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia Energy Absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement

Rear Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the rear object alarm sensor bracket.
Perform the necessary programming and setup procedure: Control Module References
