Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

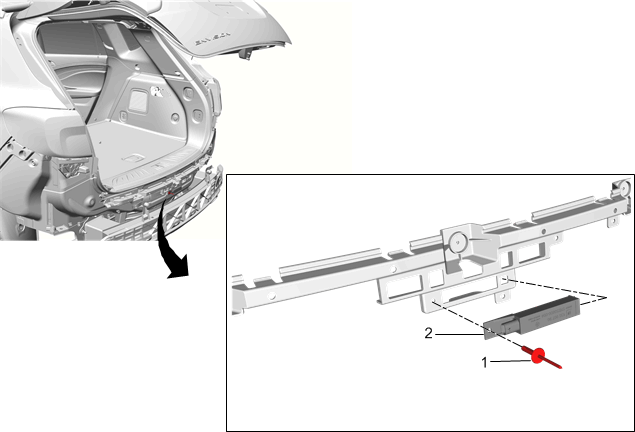

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Dual Exhaust)Rear Bumper Fascia Replacement (Single Exhaust)
1	Ignition Lock Key Transmitter Antenna Rivet
2	Ignition Lock Key Transmitter Antenna Procedure  Disconnect the electrical connector.
