Module Power, Ground, Serial Data, and Memory Controls (A45)

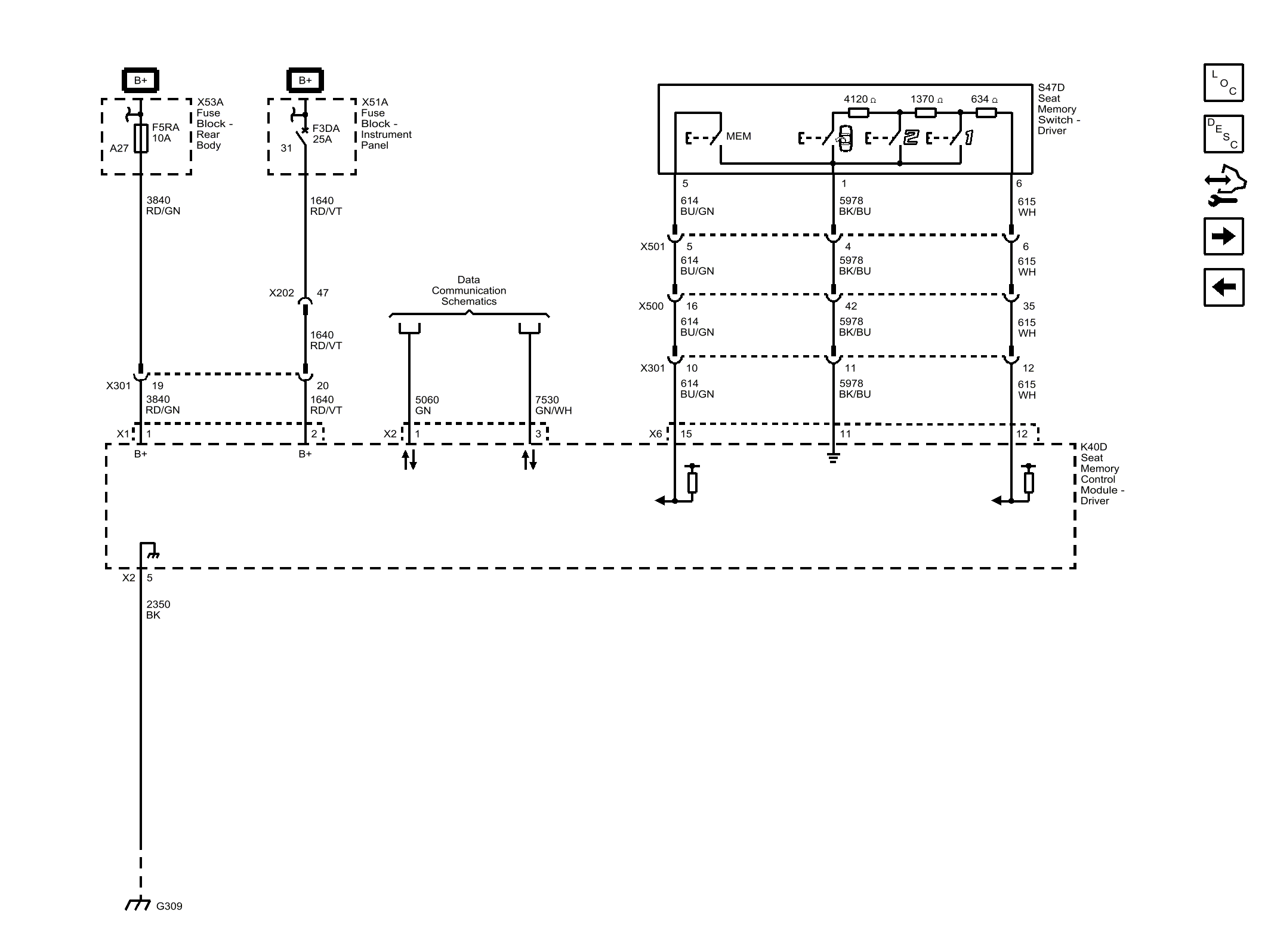

Fig 1: Module Power, Ground, Serial Data, and Memory Controls (A45)
GM4492650Courtesy of GENERAL MOTORS COMPANY
