Front Seat Vent Fan Control Module Replacement

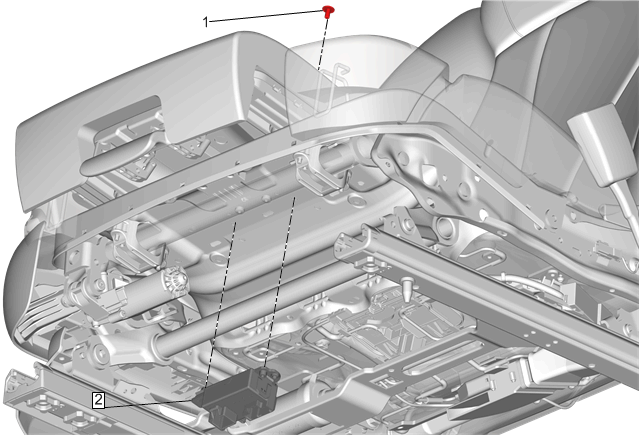

Fig 1: Front Seat Vent Fan Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Removal and Installation
1	Front Seat Vent Fan Control Module Screw CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in) Procedure Adjust the front seat cushion extension to the full forward position to gain access to the module screw.
2	Front Seat Vent Fan Control Module Procedure Disconnect all electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

Front Seat Vent Fan Control Module Screw

CAUTION:

Tighten
4.5 N.m (40 lb in)
Procedure
Adjust the front seat cushion extension to the full forward position to gain access to the module screw.

Front Seat Vent Fan Control Module

Procedure
