Front Side Door Window Inner Sealing Strip Replacement

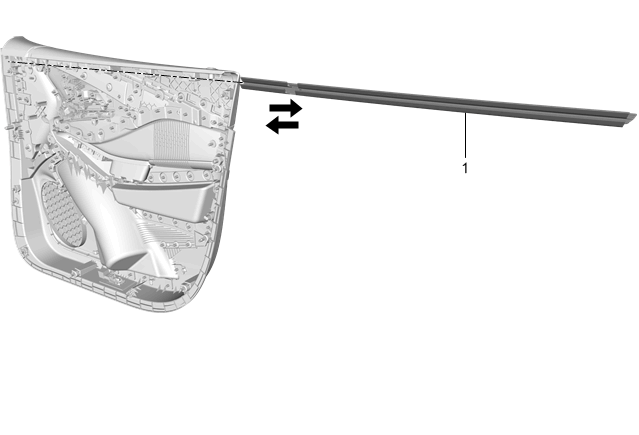

Fig 1: Front Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Front Side Door Window Inner Sealing Strip Procedure Slide the sealing strip out of the door trim. Slide the sealing strip through the door trim.

Callout

Component Name

Front Side Door Window Inner Sealing Strip

Procedure
