Front Side Door Window Regulator Motor Replacement

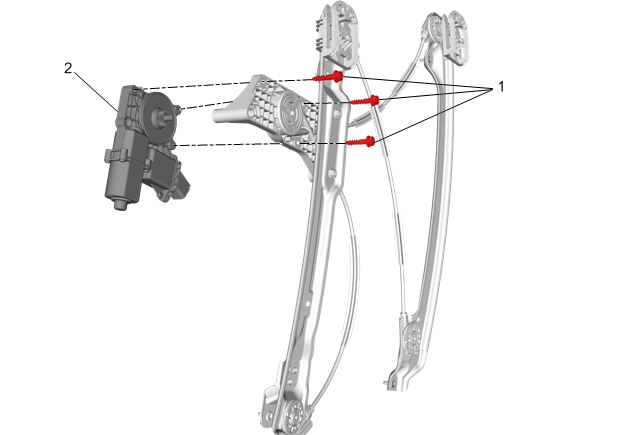

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Side Door Window Regulator Replacement (Driver Side) Front Side Door Window Regulator Replacement (Passenger Side)
1	Front Side Door Window Regulator Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  11 N.m (97 lb in)
2	Front Side Door Window Regulator Motor
