Front Side Door Window Replacement (Passenger Side)

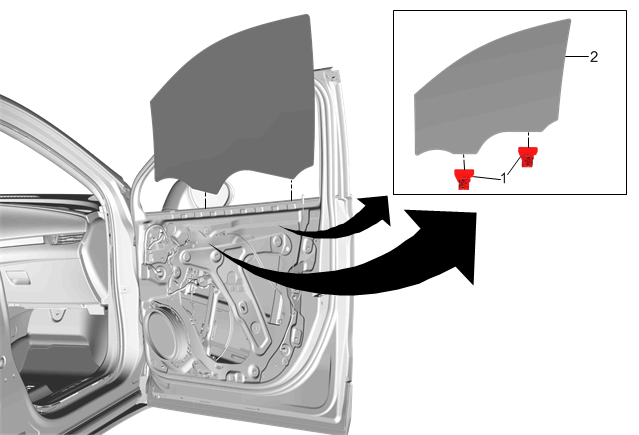

Fig 1: Front Side Door Window (Passenger Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Refer to Express Window Down Warning . Preliminary Procedures Apply masking tape to the door frame and applique. Front Side Door Window Weatherstrip Replacement Remove the water deflector.
1	Front Side Door Window Regulator Sash Clip (Qty: 2) Procedure Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor. Lower the window enough to gain access to the window regulator sash clips. Using the appropriate tool, push the front side door window sash clips outward, while pulling up on window to release the window from the sash clips. Carefully grasp and tilt the window as you guide the window up and forward. Place the window into the door frame, slide the window downward into the regulator sash clips.
2	Front Side Door Window
