Front Side Door Window Switch Replacement (Right Side)

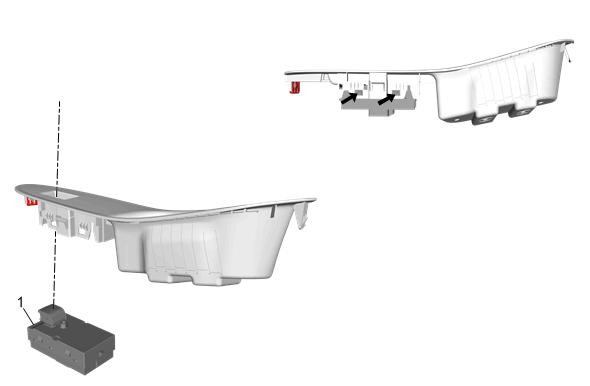

Fig 1: Front Side Door Window Switch (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side)
1	Front Side Door Window Switch Assembly Procedure Release the tabs and remove the switch. Control Module References for programming and setup information, if required.

Callout

Component Name

Front Side Door Window Switch Assembly

Procedure
