Rear Side Door Window Regulator Motor Replacement

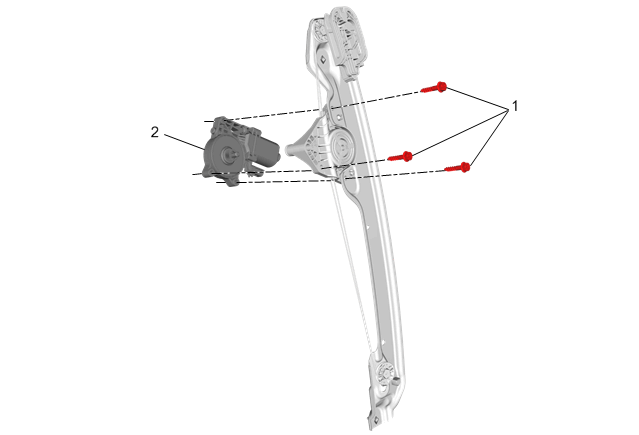

Fig 1: Rear Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Side Door Window Regulator Replacement
1	Rear Side Door Window Regulator Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  11 N.m (97 lb in)
2	Rear Side Door Window Regulator Motor
