Rear Side Door Window Weatherstrip Replacement

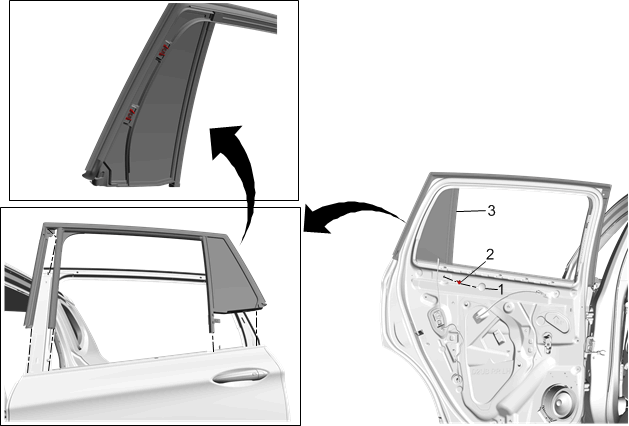

Fig 1: Rear Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the window in the full down position. Rear Side Door Window Frame Front Applique Replacement Rear Side Door Window Garnish Molding Replacement
1	Rear Side Door Inner Access Hole Plug
2	Rear Side Door Window Channel Retainer Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Rear Side Door Window Weatherstrip Procedure Using the appropriate tool, release the 2 rear clips and pull weatherstrip outward from the frame. Pull the weatherstrip upward, releasing the weatherstrip from the front door frame and the rear channel. Insert the weatherstrip downward in the front and rear channel until fully seated. Position the window weatherstrip in both corners of the frame, working the weatherstrip around the frame. Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the channels. NOTE: The upper front corner bolt is removed as part of the rear side door window frame front applique.
