Installation Procedure

    Fig 1: Battery Positive Cable Harness Retainers
    GM3876572Courtesy of GENERAL MOTORS COMPANY
  1. Engage Retainer (1)
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle .
    3. Fig 2: Generator Stud
    GM3876571Courtesy of GENERAL MOTORS COMPANY
  3. Install Battery Positive Cable (2) @Generator (3)
    4. CAUTION:

    Refer to Fastener Caution

  4. Install Battery Positive Cable Nut (1) and tighten 15 N.m (11 lb ft)
    5. Fig 3: Starter Solenoid
    GM3876569Courtesy of GENERAL MOTORS COMPANY
  5. Install Battery Positive Cable (1)
  6. Install Battery Positive Cable Nut (2) @Starter Solenoid (3) and tighten 12 N.m (106 lb in)
  7. Lower the vehicle.

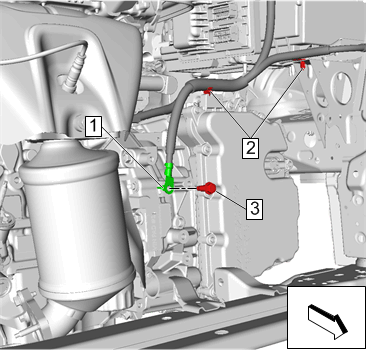

    8. Fig 4: Battery Negative Cable Ground Fastener
    GM4521275Courtesy of GENERAL MOTORS COMPANY
  8. Install Battery Negative Cable (1)
  9. Install Battery Negative Cable Ground Fastener (3) and tighten 40 N.m (30 lb ft)
  10. Engage Retainer (2)
    11. Fig 5: Battery Negative Ground Cable Terminal
    GM3876564Courtesy of GENERAL MOTORS COMPANY
  11. Install Battery Negative Cable (1)
  12. Install Battery Negative Cable Frame Ground Fastener (2) @ Upper Tie Bar Support Stud and tighten 22 N.m (16 lb ft)
    13. Fig 6: Generator Stud
    GM3876559Courtesy of GENERAL MOTORS COMPANY
  13. Install Battery Positive Cable (3)
  14. Install Battery Positive Cable Nut (2) and tighten 12 N.m (106 lb in)
  15. Close Battery Distribution Fuse Block Cover (1)
  16. Install the intake manifold cover. Intake Manifold Cover Replacement (LCV)
  17. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
