Horn Replacement

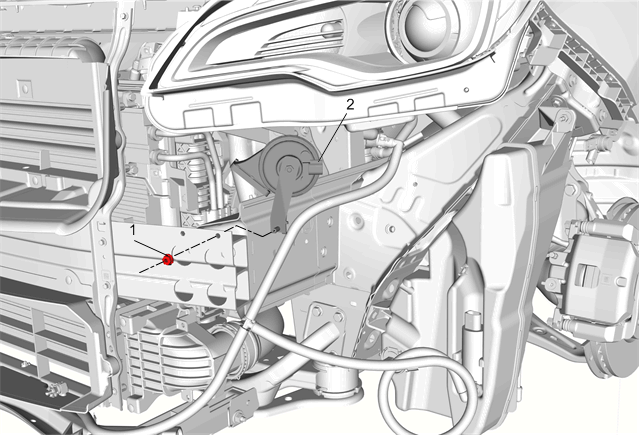

Fig 1: Horn

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Horn Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Horn Procedure Disconnect the electrical connector.
