Ambient Air Temperature Sensor Replacement

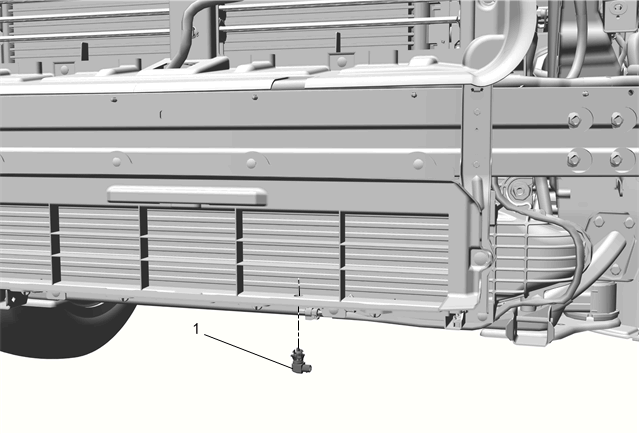

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Ambient Air Temperature Sensor Procedures Disconnect the electrical connector. Depress the ambient air temperature sensor tabs to remove from the baffle seal support.

Call out

Component Name

Ambient Air Temperature Sensor

Procedures

Disconnect the electrical connector.
Depress the ambient air temperature sensor tabs to remove from the baffle seal support.
