Head-Up Display Replacement

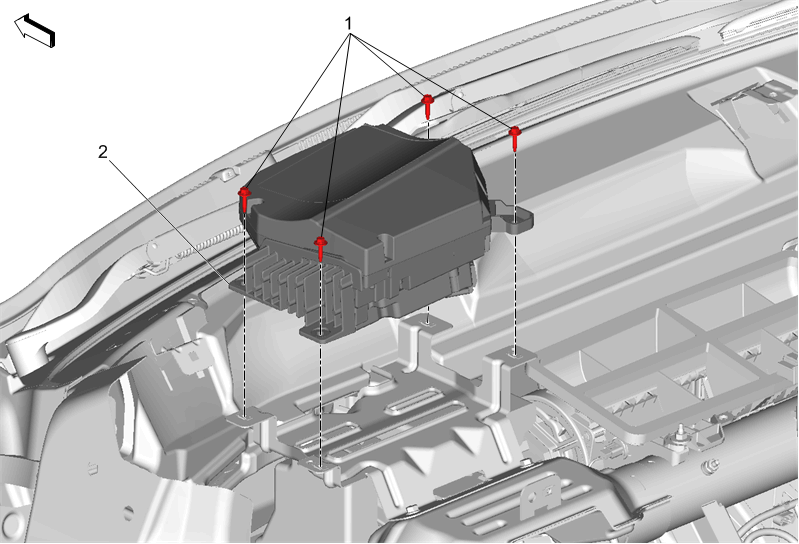

Fig 1: Head-Up Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Carrier Replacement .
1	Head-Up Display Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Head-Up Display Procedure  Disconnect the electrical connectors.
