Instrument Cluster Replacement

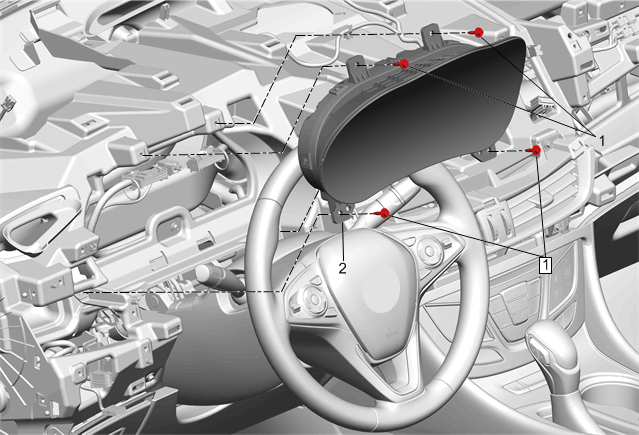

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Upper Trim Panel Replacement
1	Instrument Cluster Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.3 N.m (20 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up information, if required.

Callout

Component Name

Instrument Cluster Bolt (Qty: 4)

CAUTION:

Tighten
2.3 N.m (20 lb in)

Instrument Cluster

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and set up information, if required.
