Installation Procedure

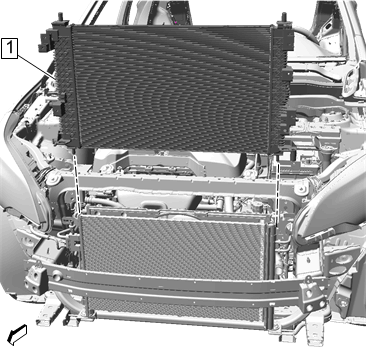

    Fig 1: Radiator
    GM4527031Courtesy of GENERAL MOTORS COMPANY
  1. Install Radiator (1)
  2. Install Radiator Upper Insulator Radiator Upper Insulator Replacement

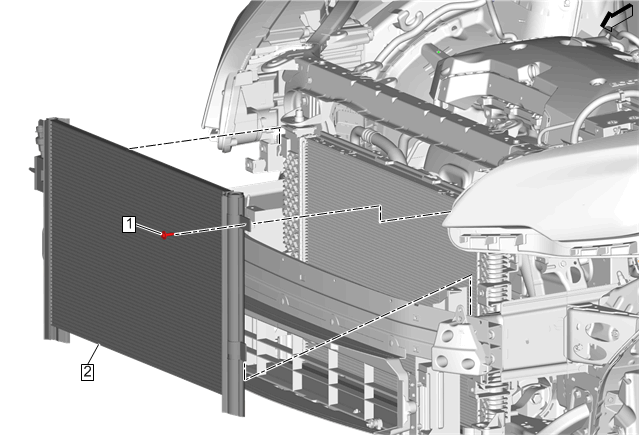

    3. Fig 2: Air Conditioning Condenser
    GM4528267Courtesy of GENERAL MOTORS COMPANY
  3. Install the air conditioning condenser (2) onto the radiator. Air Conditioning Condenser Replacement (LCV)
    4. Fig 3: Radiator Outlet Hose
    GM3823822Courtesy of GENERAL MOTORS COMPANY
  4. Install Radiator Outlet Hose (2) @Radiator Radiator Outlet Hose Replacement (LCV)

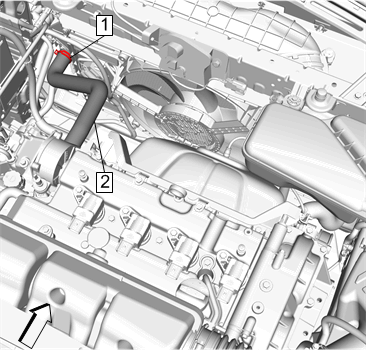

    5. Fig 4: Radiator Inlet Hose And Clamp
    GM4520313Courtesy of GENERAL MOTORS COMPANY
  5. Install Radiator Inlet Hose (2) @Radiator Radiator Inlet Hose Replacement (LCV)
  6. Install Engine Coolant Auxiliary Fan Shroud Engine Coolant Auxiliary Fan Shroud Replacement (LCV)
    7. Fig 5: Transmission Fluid Auxiliary Cooler
    GM3871528Courtesy of GENERAL MOTORS COMPANY
  7. Install Transmission Fluid Auxiliary Cooler (1)Transmission Fluid Auxiliary Cooler Replacement (LTG, LCV)

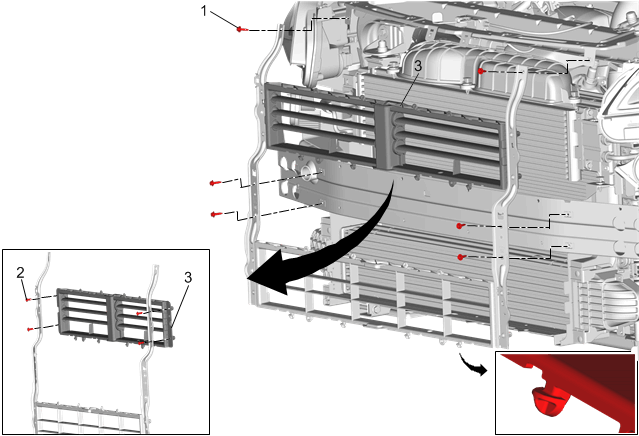

    8. Fig 6: Front Bumper Shutter
    GM3825728Courtesy of GENERAL MOTORS COMPANY
  8. Install Front Bumper Shutter (3)Front Bumper Shutter Replacement
    9. Fig 7: Forward Range Radar Module
    GM3910820Courtesy of GENERAL MOTORS COMPANY
  9. Install Forward Range Radar Module Bracket (2) @Front Bumper Fascia Center Support Forward Range Radar Module Replacement
  10. Fill the cooling system. Cooling System Draining and Filling (Static Fill) Cooling System Draining and Filling (GE 47716)
  11. Check the cooling system for leaks.
