Fuel Tank Heat Shield Replacement

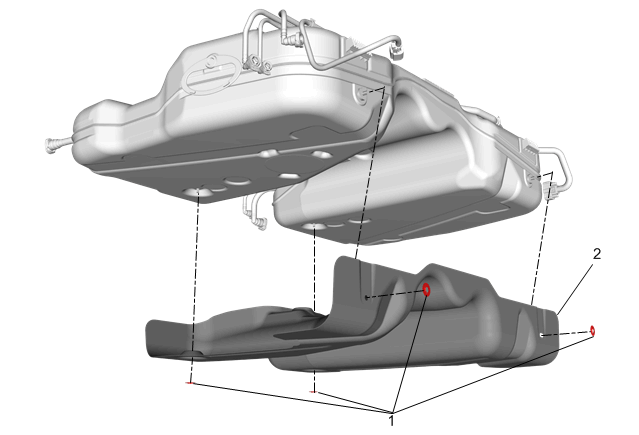

Fig 1: Fuel Tank Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Heat Shield Retainers (Qty: 4) CAUTION: Refer to Fastener Caution
2	Fuel Tank Heat Shield
