Engine Control Module Bracket Replacement (LCV)

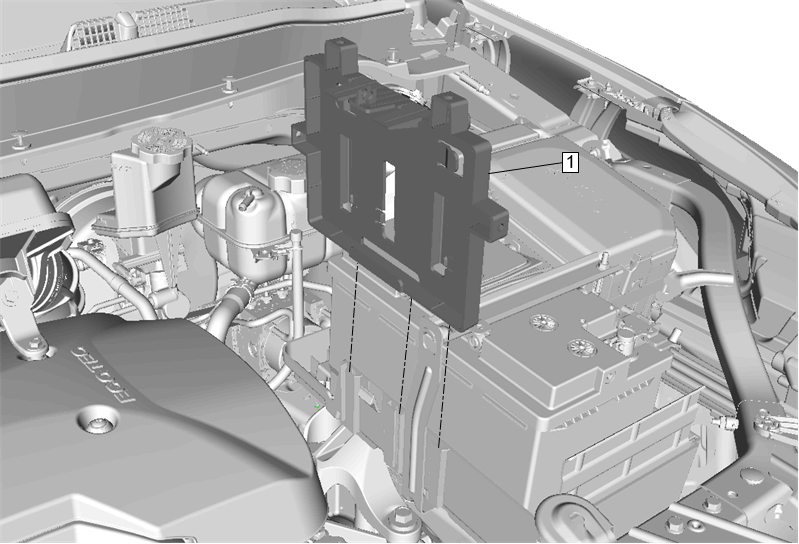

Fig 1: Engine Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Engine Control Module. Refer to Engine Control Module Replacement (LCV)
1	Engine Control Module Bracket Procedure Remove harness from bracket. Release retaining tab to remove bracket from battery tray.

Callout

Component Name

Preliminary Procedure
Remove Engine Control Module. Refer to Engine Control Module Replacement (LCV)

Engine Control Module Bracket

Procedure
