Forward Collision Alert and Lane Assist (UGN)

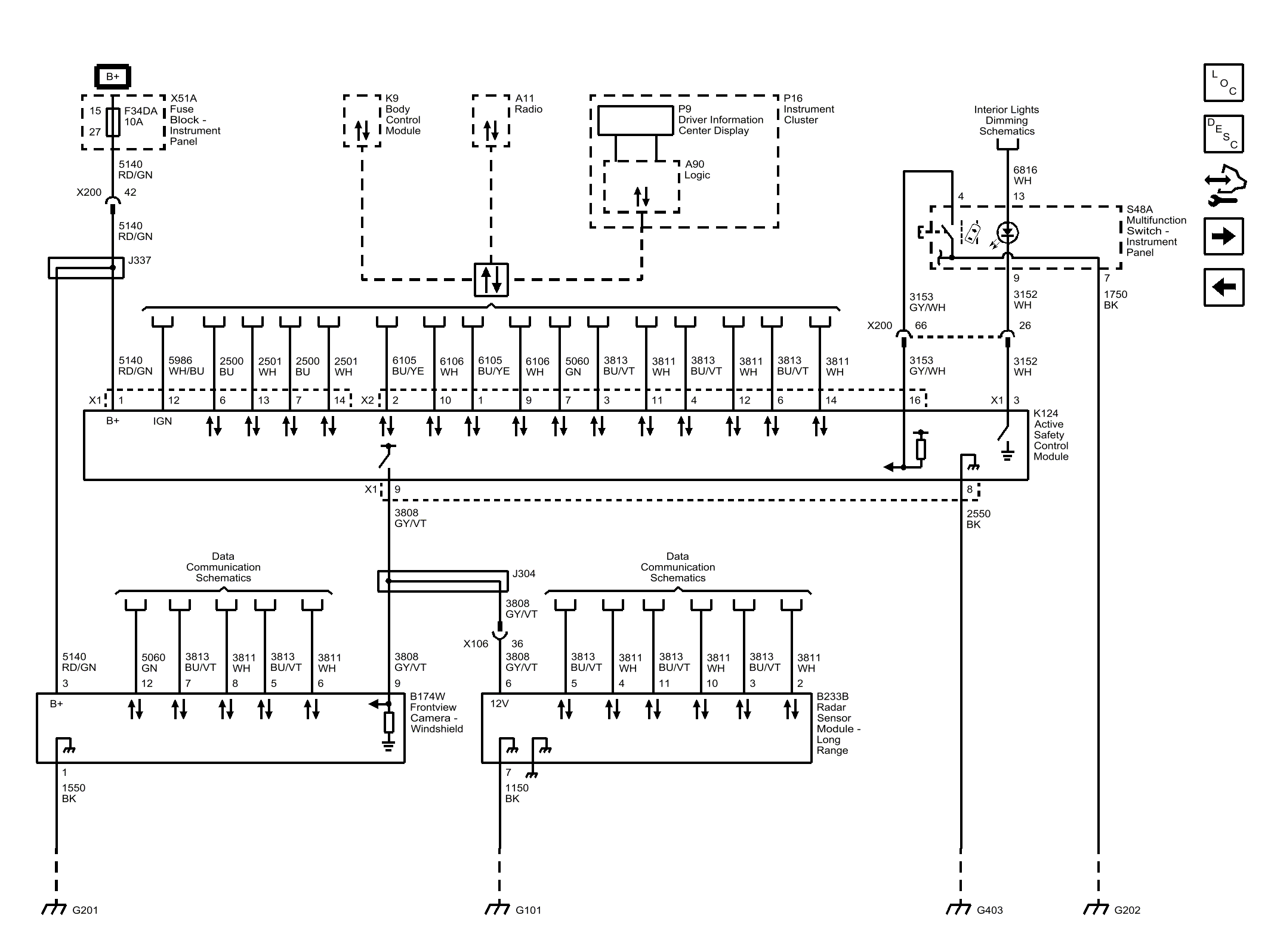

Fig 1: Forward Collision Alert and Lane Assist (UGN)
GM4493094Courtesy of GENERAL MOTORS COMPANY
