Telematics Communication Interface Control Module
Telematics Communication Interface Control Module

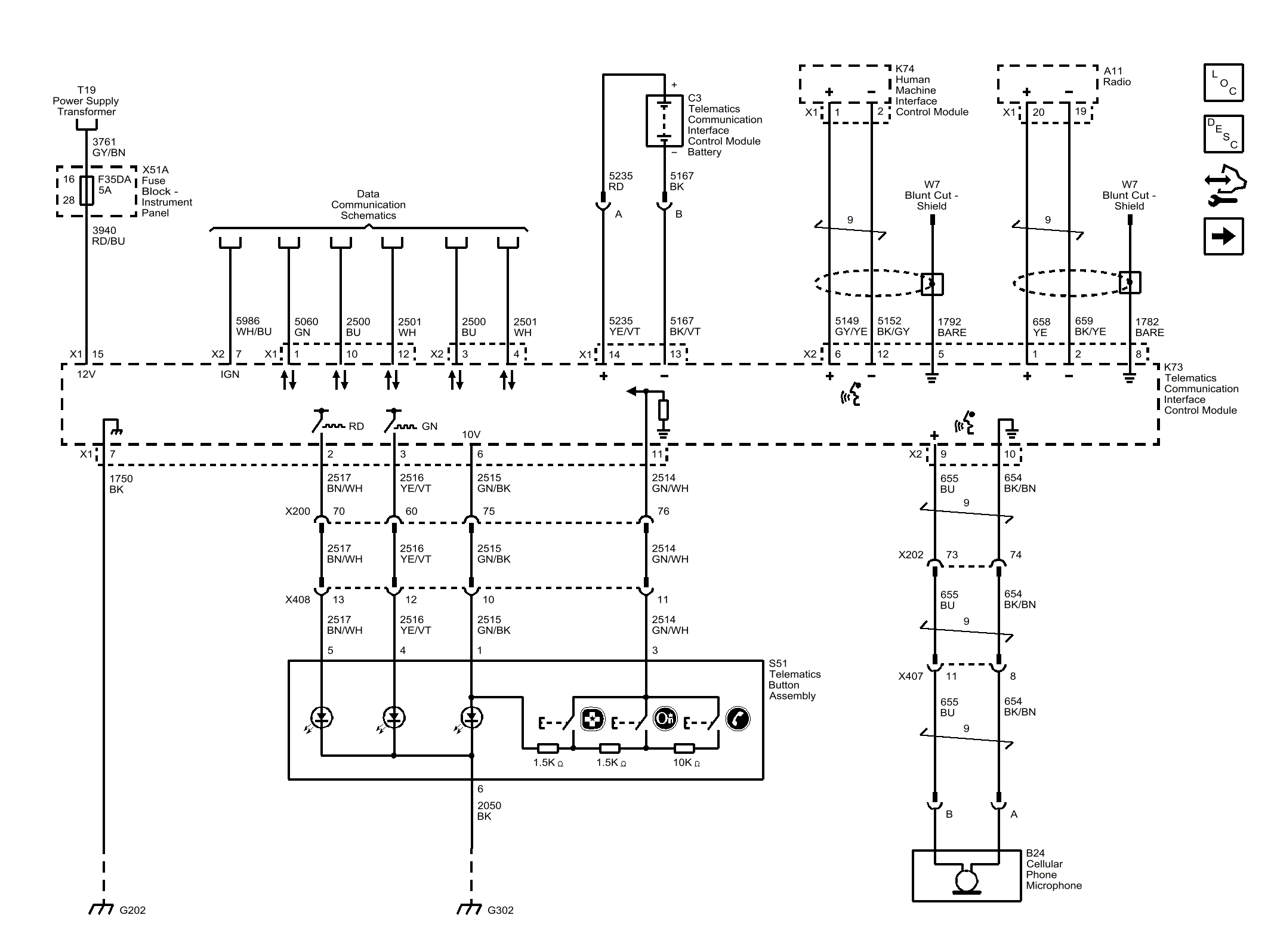

Fig 1: Telematics Communication Interface Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
