Collision Avoidance - Camera and Module Power, Ground, and Controls (UGN)

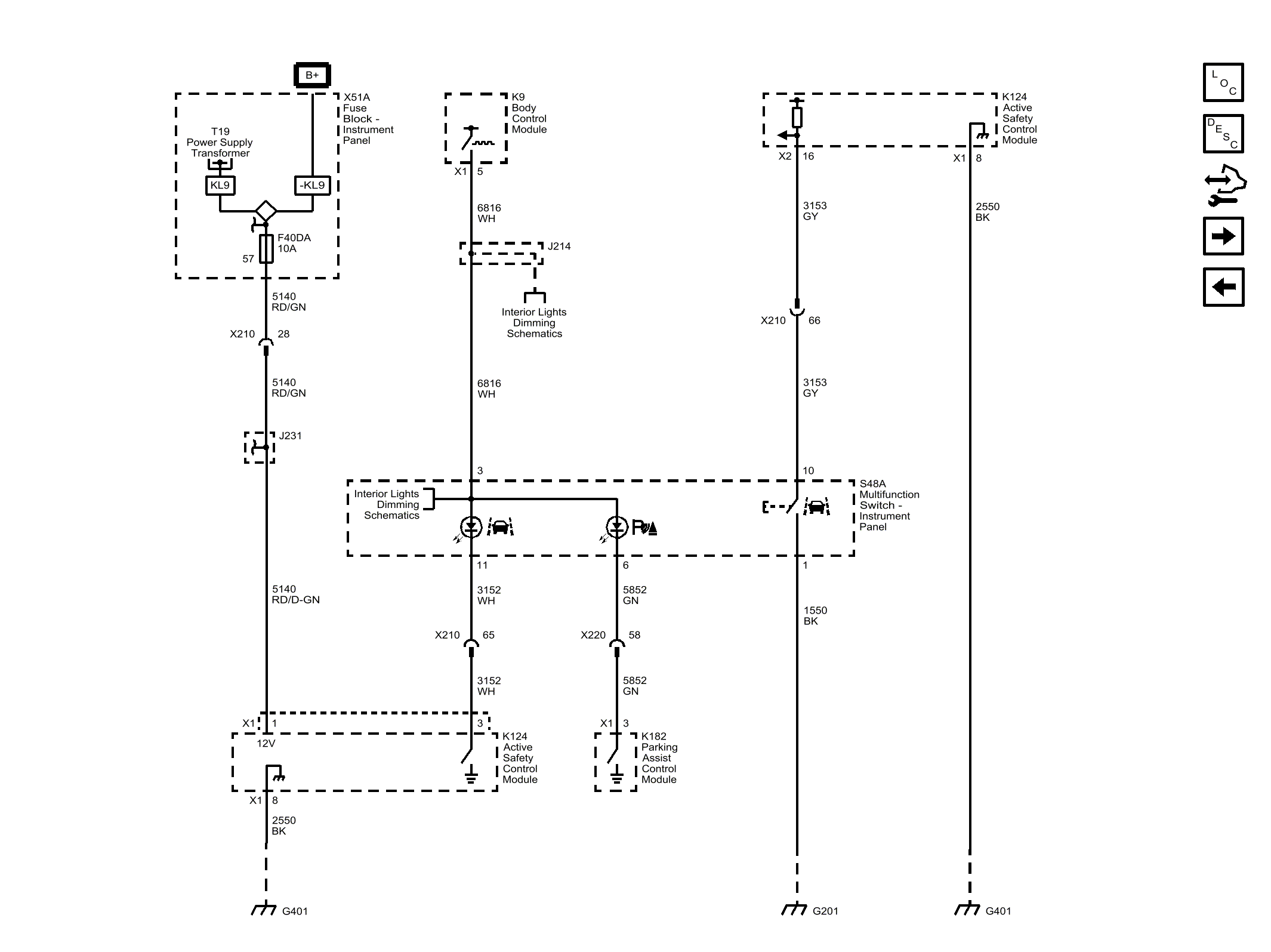

Fig 1: Collision Avoidance - Camera and Module Power, Ground, and Controls (UGN)
GM4298510Courtesy of GENERAL MOTORS COMPANY
