Cellular System, Entertainment System, And Navigation System
›
Schematic Wiring Diagrams
›
Radio/Navigation System Wiring Schematics
›
Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data
Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data

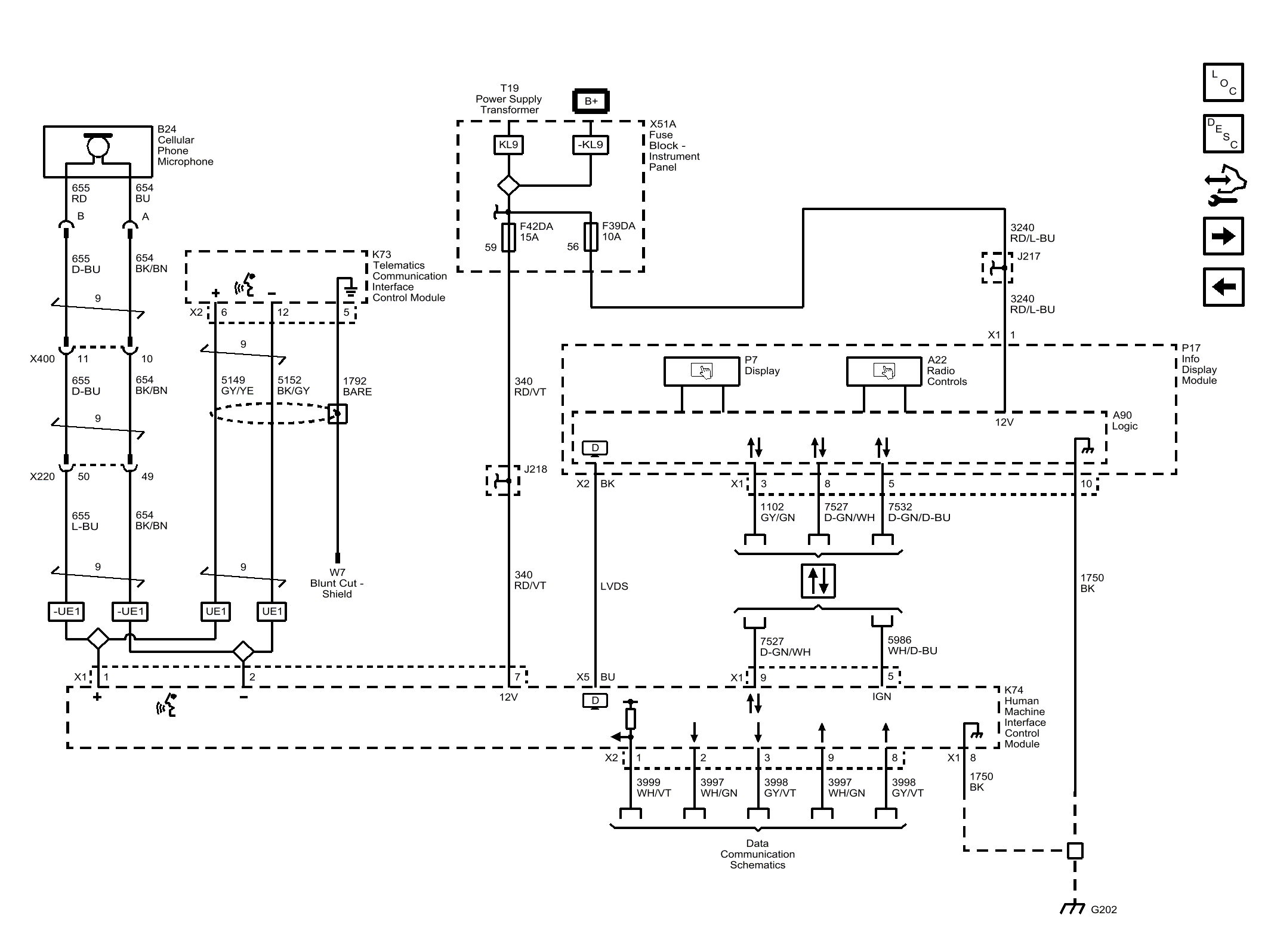

Fig 1: Human Machine Interface Control and Info Display Modules Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
