Low Frequency Instrument Panel Antenna Replacement

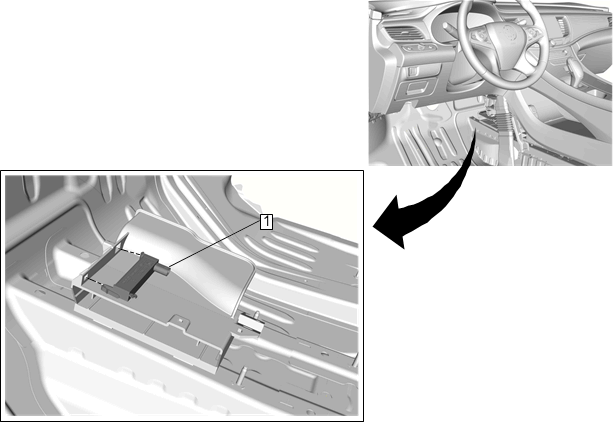

Fig 1: Low Frequency Instrument Panel Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Reposition carpet to access antenna. Front Floor Panel Carpet Replacement - Right Side
1	Low Frequency Instrument Panel Antenna Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedures
Reposition carpet to access antenna. Front Floor Panel Carpet Replacement - Right Side

Low Frequency Instrument Panel Antenna

Procedure
