Keyless Entry - Passive and Keyless Start

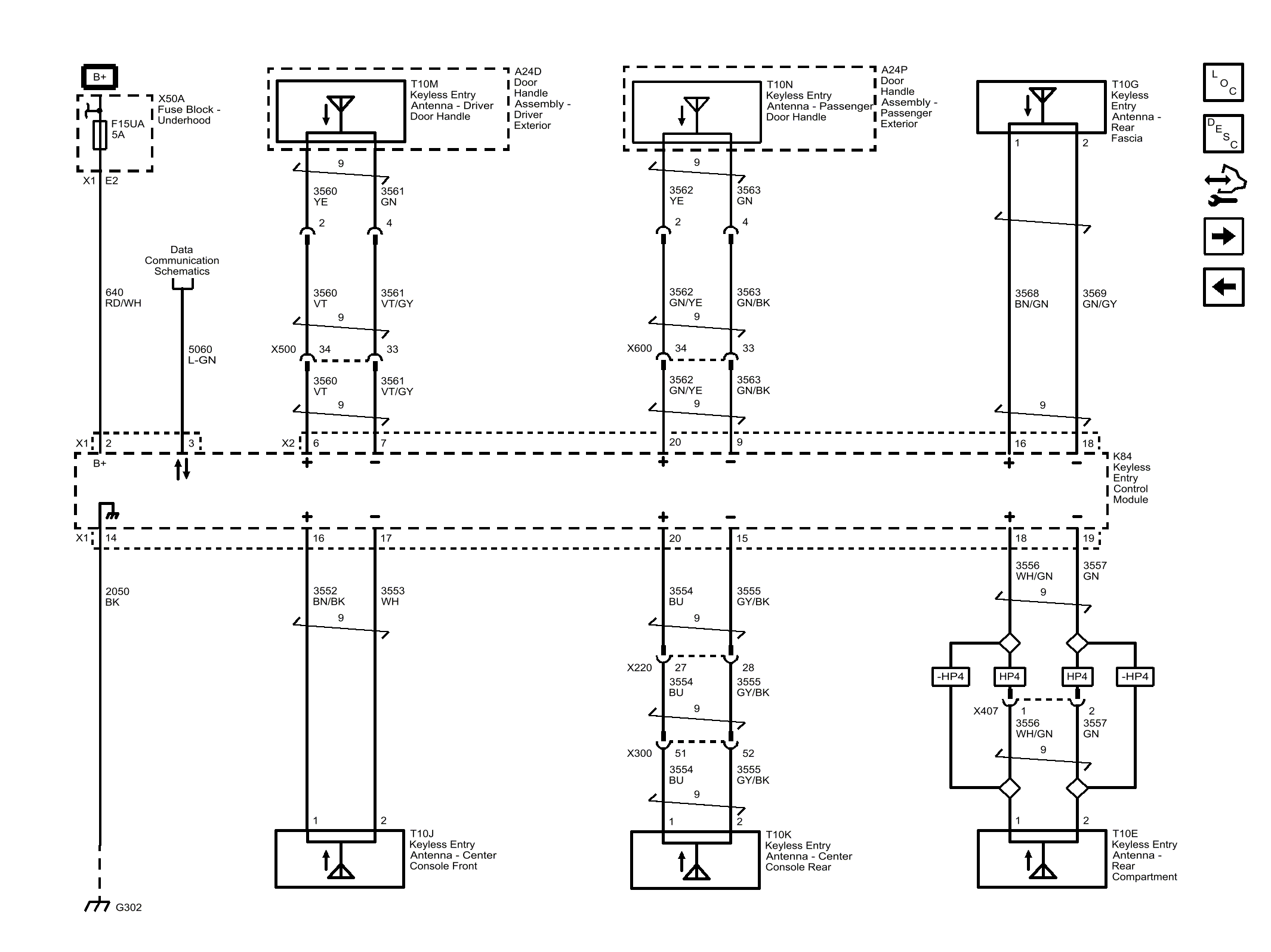

Fig 1: Keyless Entry - Passive and Keyless Start
GM4323819Courtesy of GENERAL MOTORS COMPANY
