Outside Rearview Mirror Motor Replacement

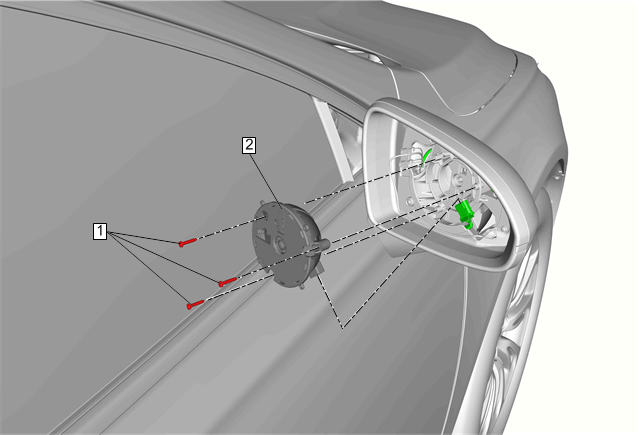

Fig 1: Outside Rearview Mirror Motor
GM4323076Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Outside Rearview Mirror Glass Replacement
1 Bolt
CAUTION:

Fastener Caution


Tighten
0.8 N.m (7 lb in)
2 Outside Rearview Mirror Motor

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
  3. Inspect the outside rearview mirror for proper operation.
