Battery Tray Replacement

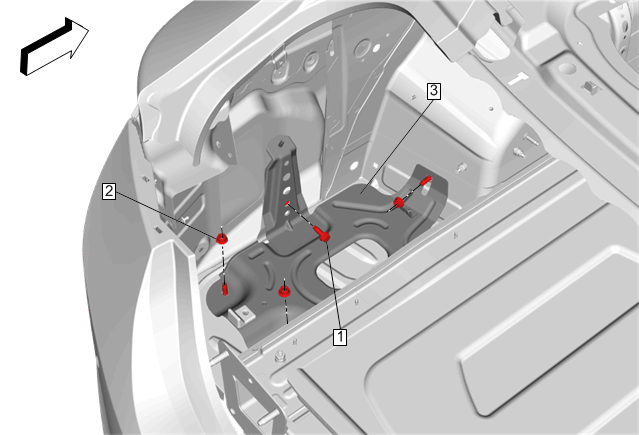

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Battery Replacement
1	Battery Tray Bolt CAUTION: Refer to Fastener Caution tighten 22 N.m (16 lb ft)
2	Battery Tray Nut tighten 22 N.m (16 lb ft)
3	Battery Tray
