Intake Air Duct Replacement

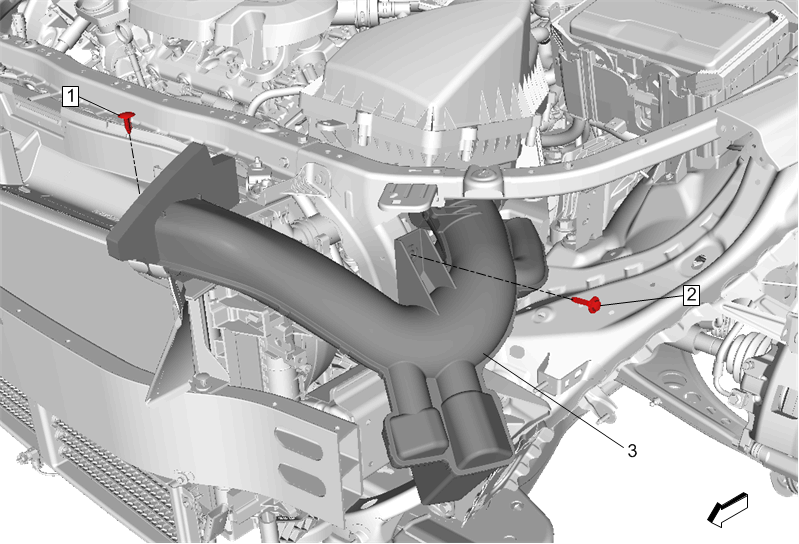

Fig 1: Intake Air Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Headlamp Replacement (T4F) Front Bumper Fascia Replacement
1	Intake Air Duct Retainer
2	Intake Air Duct Bolt CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
3	Intake Air Duct
