Front Intake Air Duct Deflector Replacement

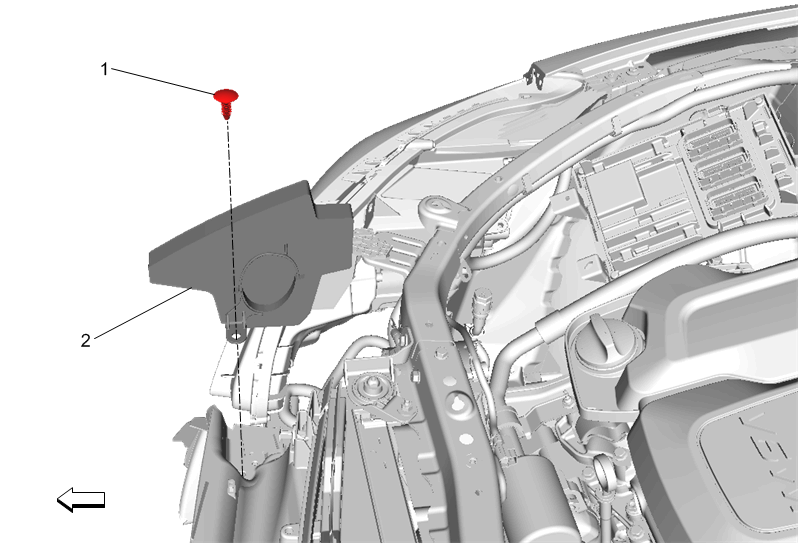

Fig 1: Front Intake Air Duct Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Front Intake Air Duct Deflector Retainer
2	Front Intake Air Duct Deflector
