Right Side of the Engine Components (LFV)

Right Side of the Engine Components (LFV)

Items
1. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFV)
2. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LFV)
3. B68 Knock Sensor (LFV/LKN) B68 Knock Sensor (LFV/LKN)
4. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFV)

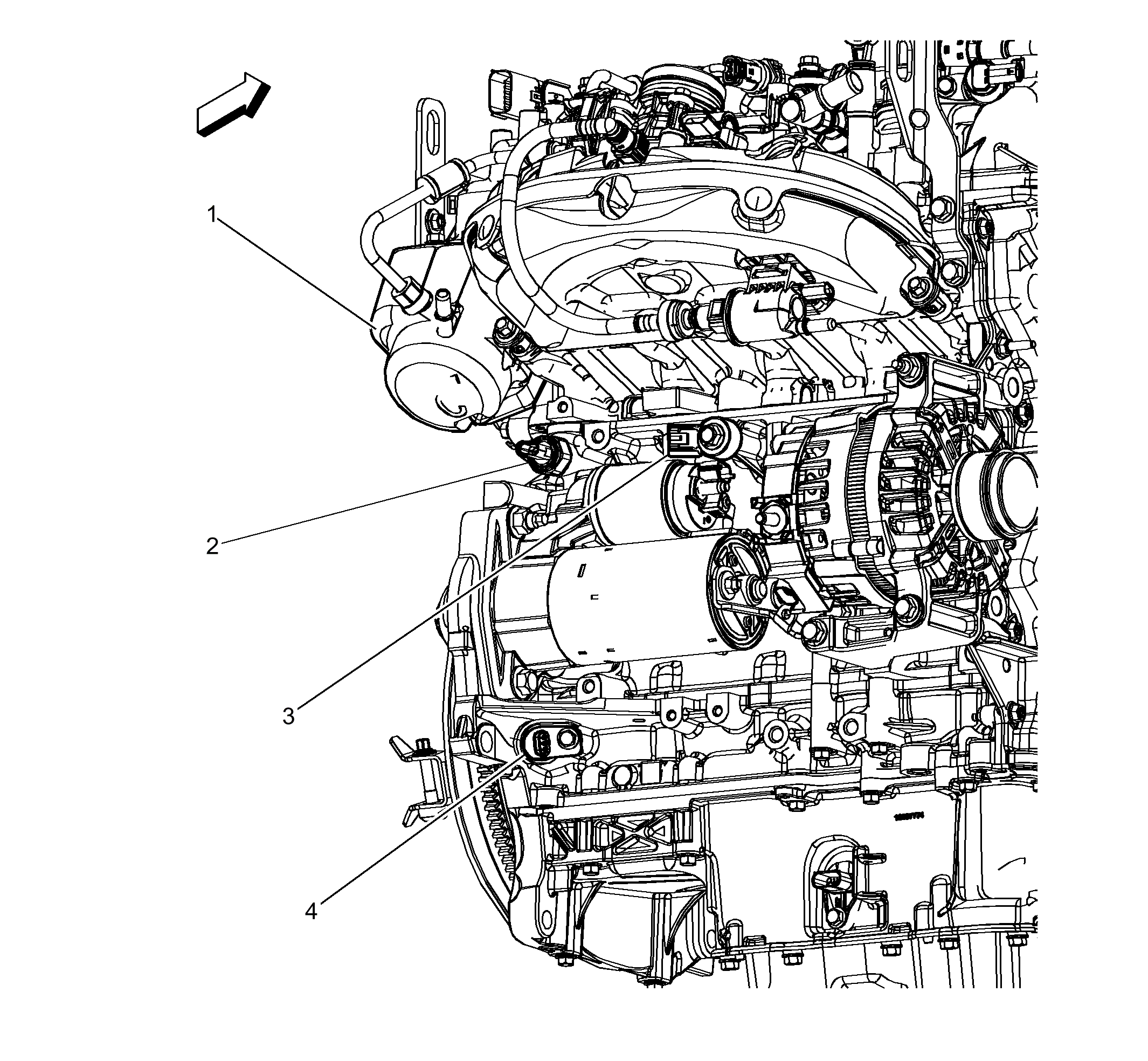

Fig 1: Right Side of the Engine Components (LFV)
GM4319024Courtesy of GENERAL MOTORS COMPANY
