Mass Airflow Sensor Replacement

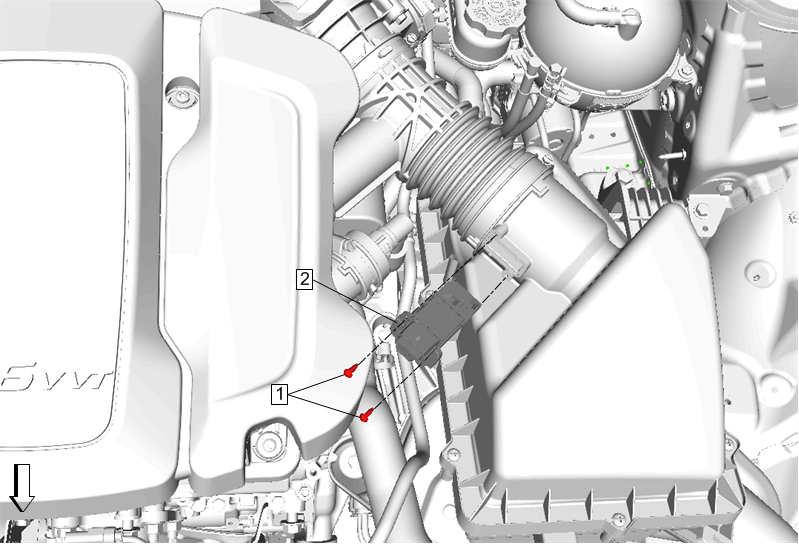

Fig 1: Mass Airflow Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mass Airflow Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  1.4 N.m (12 lb in)
2	Mass Airflow Sensor Procedure  Disconnect the electrical connector.
