Chassis Control Module Bracket Replacement

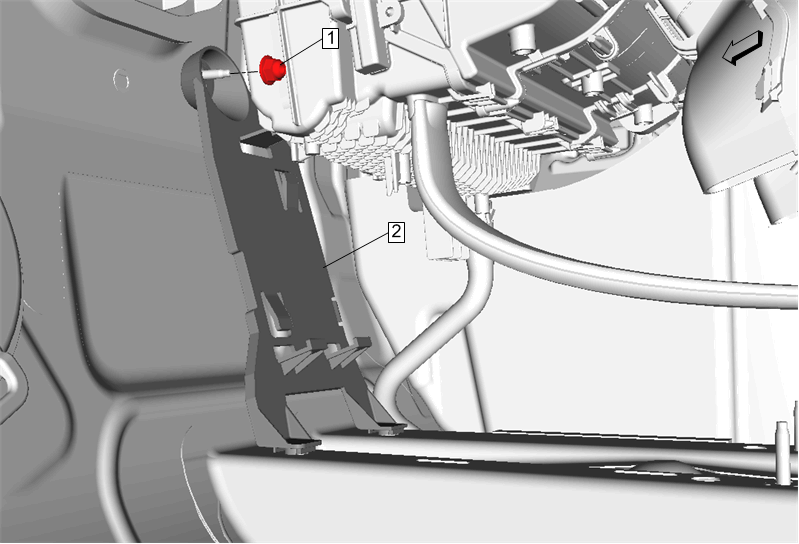

Fig 1: Chassis Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Chassis Control Module Replacement
1	Chassis Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Chassis Control Module Bracket
