Disc Player Replacement

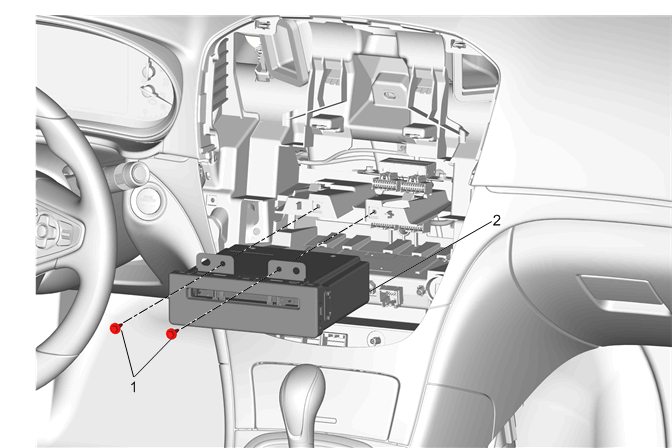

Fig 1: Disc Player

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
1	Disc Player Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Disc Player Procedure Disconnect the electrical connectors.
