Linear Interconnect Network (except CZ2)

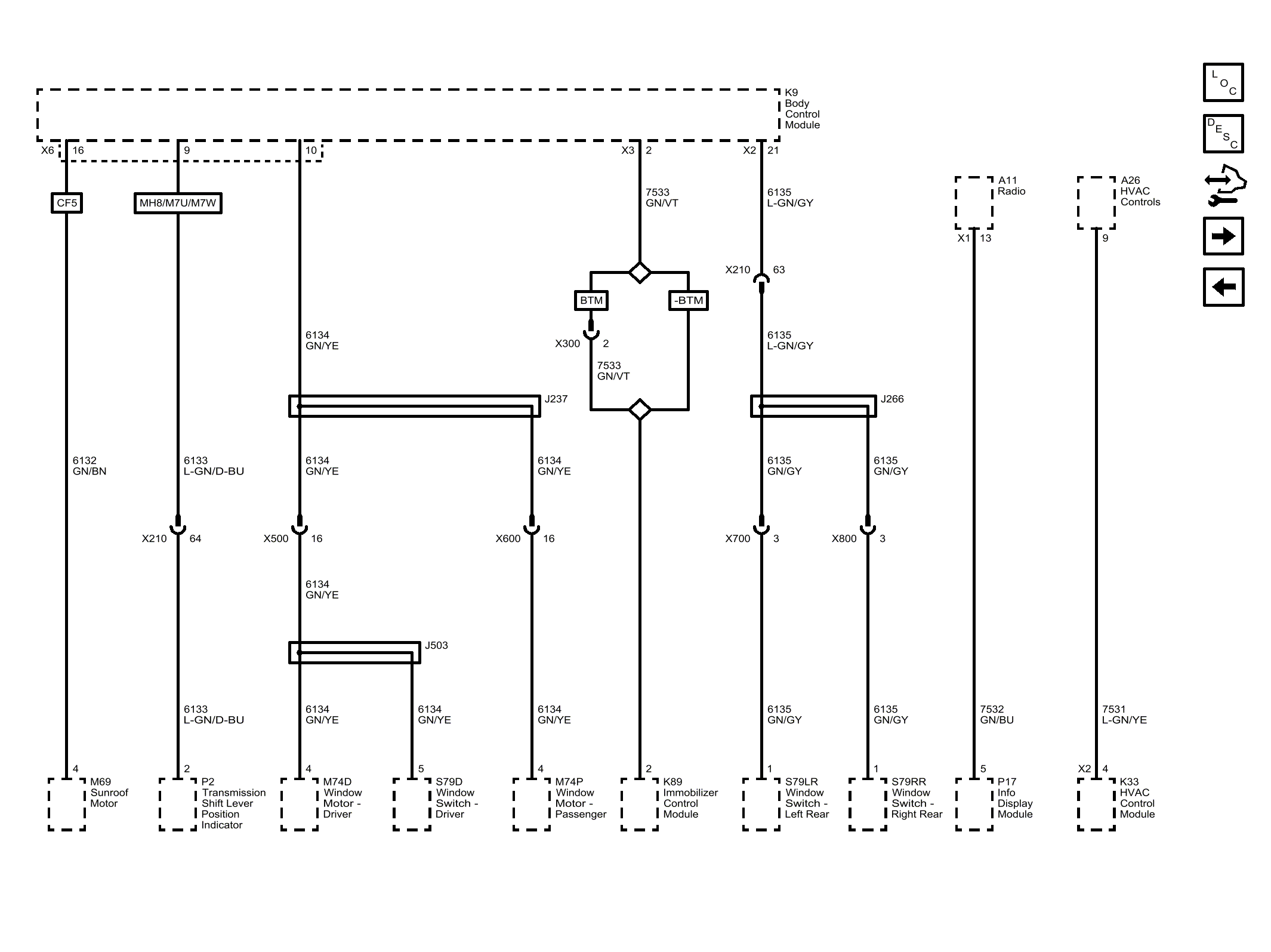

Fig 1: Linear Interconnect Network (except CZ2)
GM4423178Courtesy of GENERAL MOTORS COMPANY
