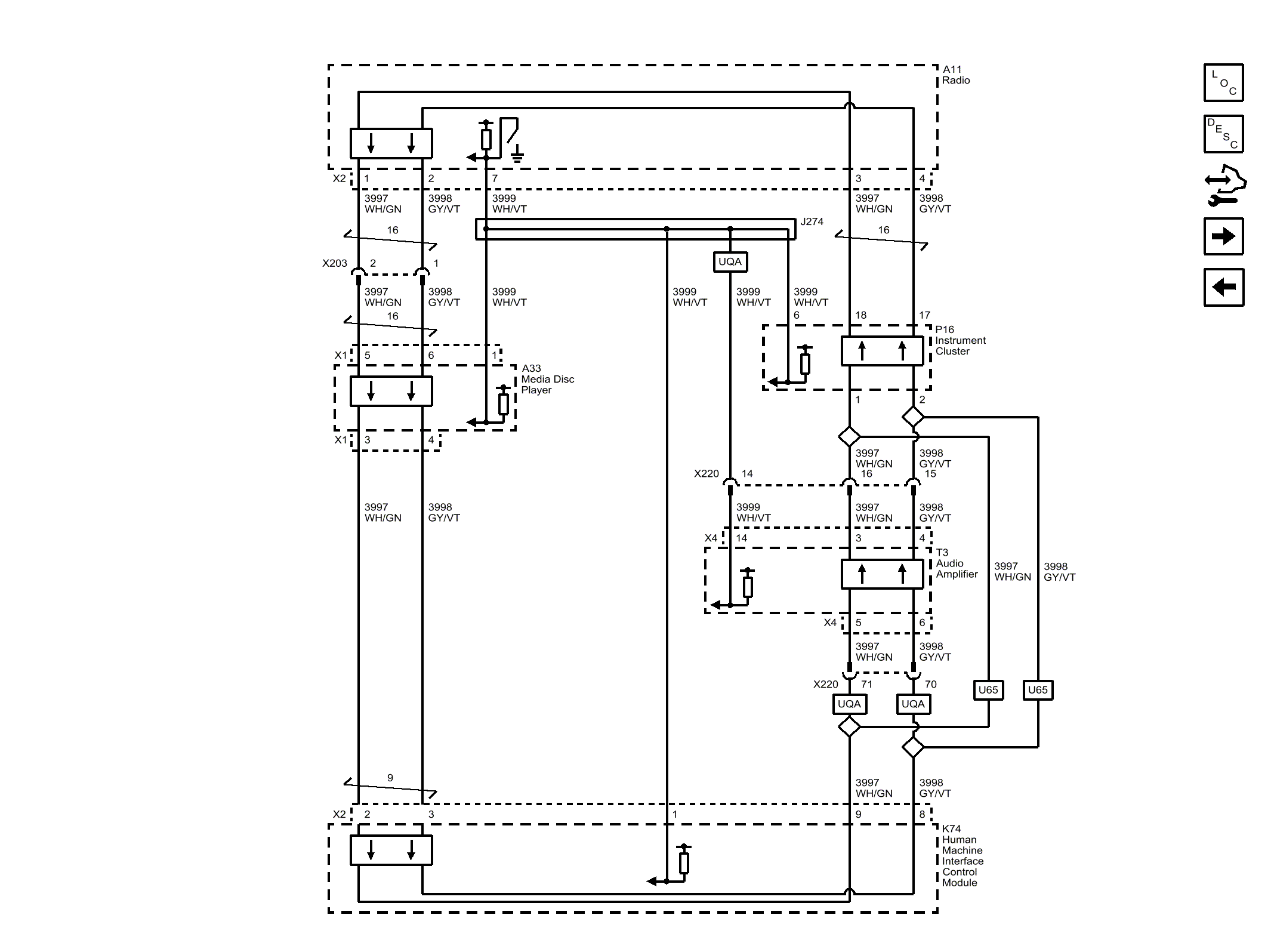

Home › Buick › 2017 › Regal GS, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Most 50 Bus (except CZ2)
